CS14 Shafts

Home / Catalogue / Carbon endless sensor / CS14 / CS14 Shafts

Shafts are available in different colors (color chart in “how to order” section) and with self-extinguishable property, according to UL 94 V-0, under request. ACP can study special shaft designs.
Shafts can be sold separately or already mounted on the potentiometer.

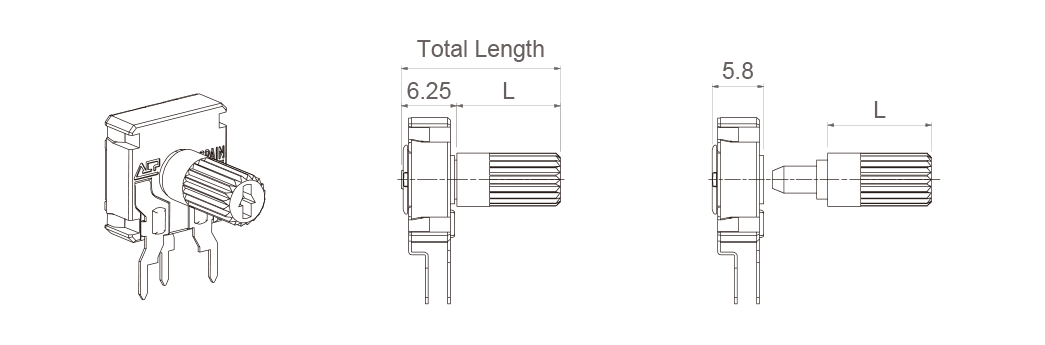

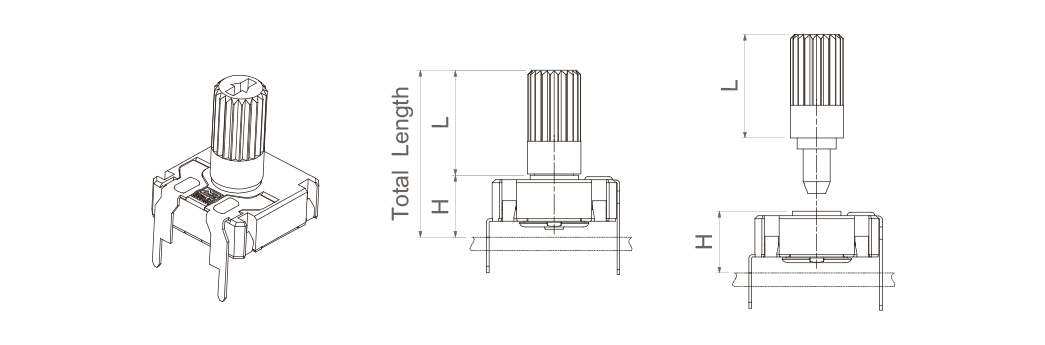

When a shaft is mounted on a potentiometer, the distance from the top of the potentiometer to the top of the shaft is marked with “L” in the table below, as shown in the drawing:

H potentiometer + shaft

V potentiometer + shaft

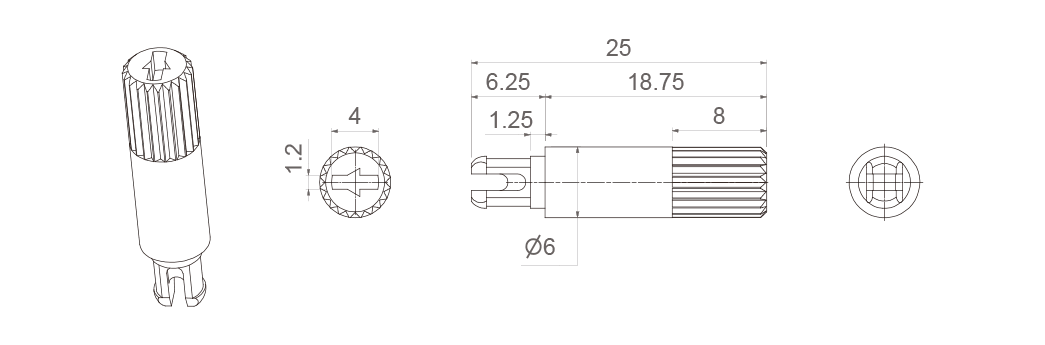

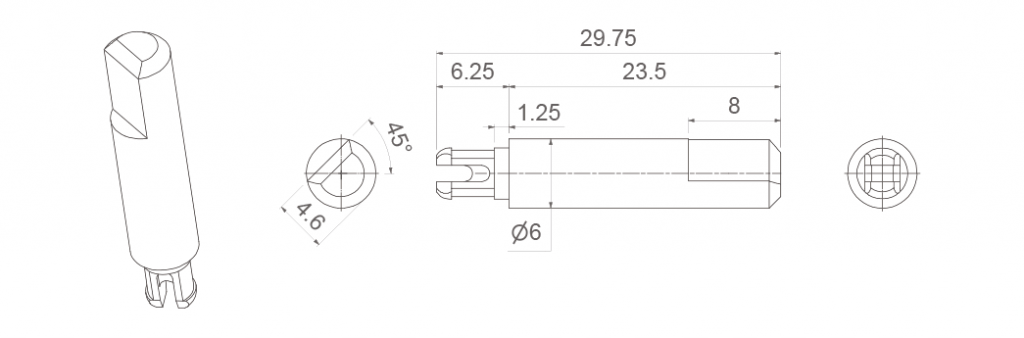

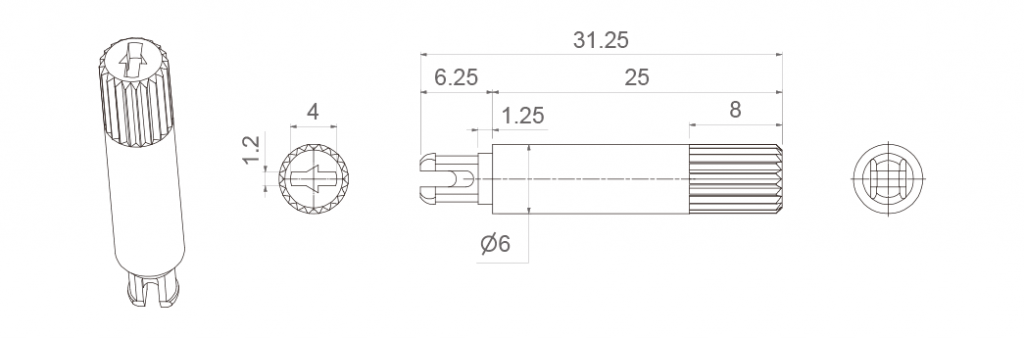

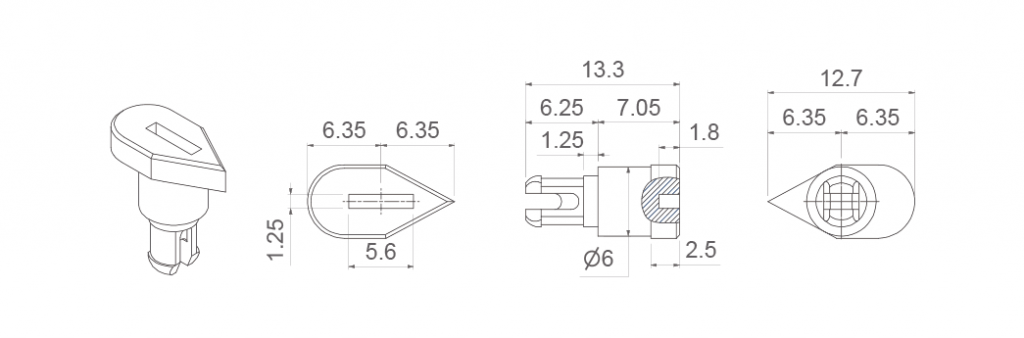

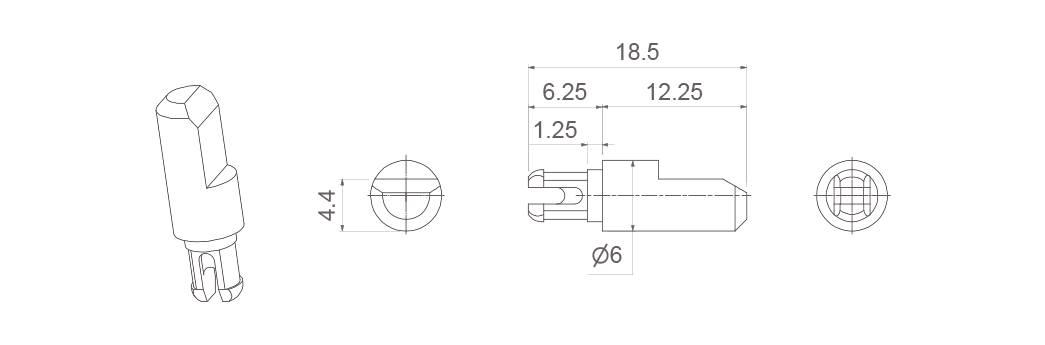

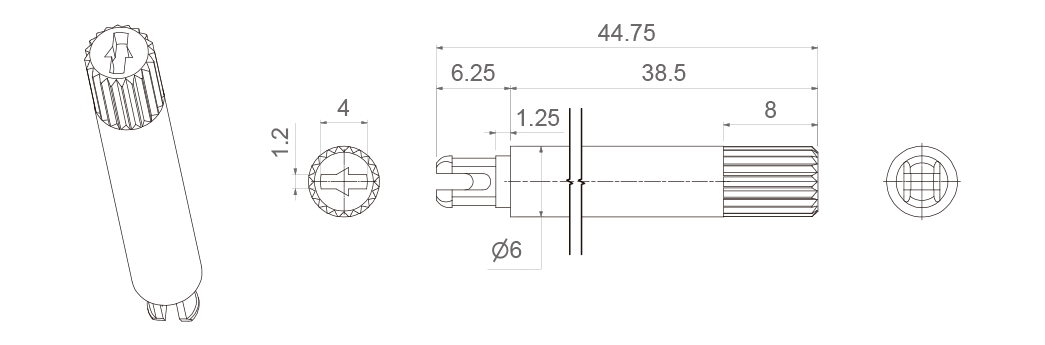

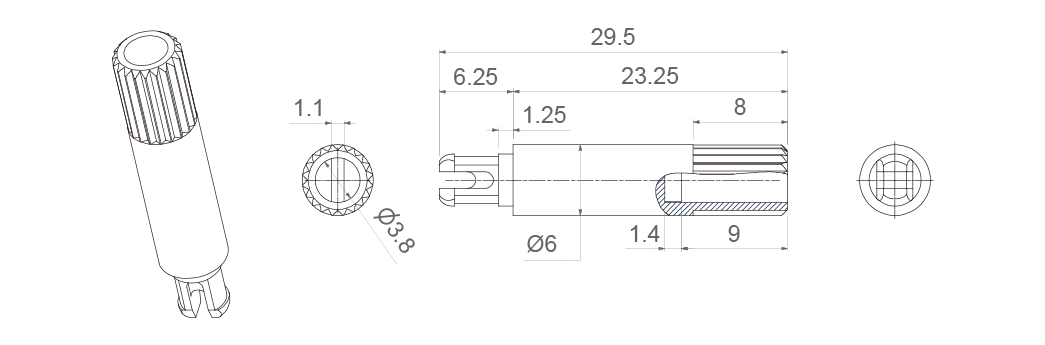

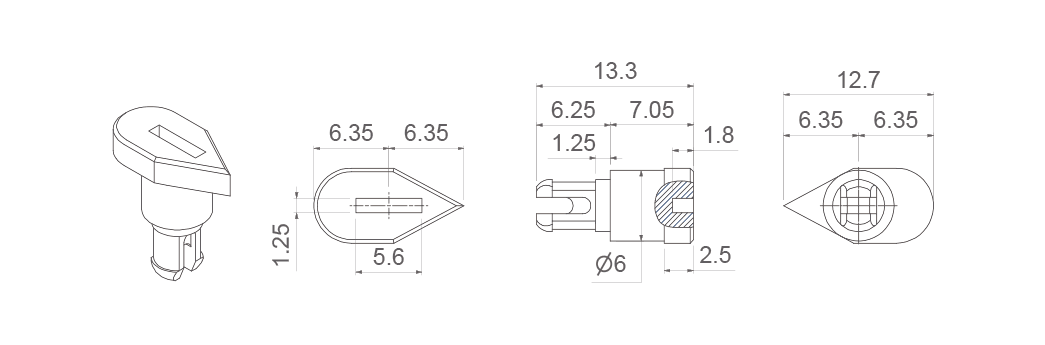

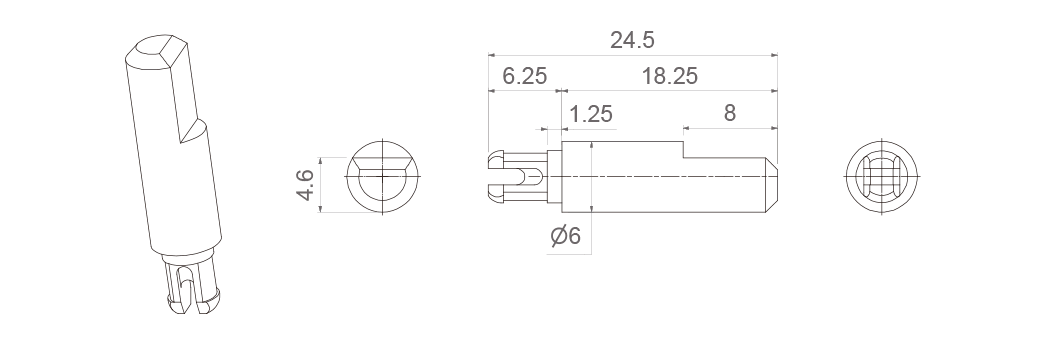

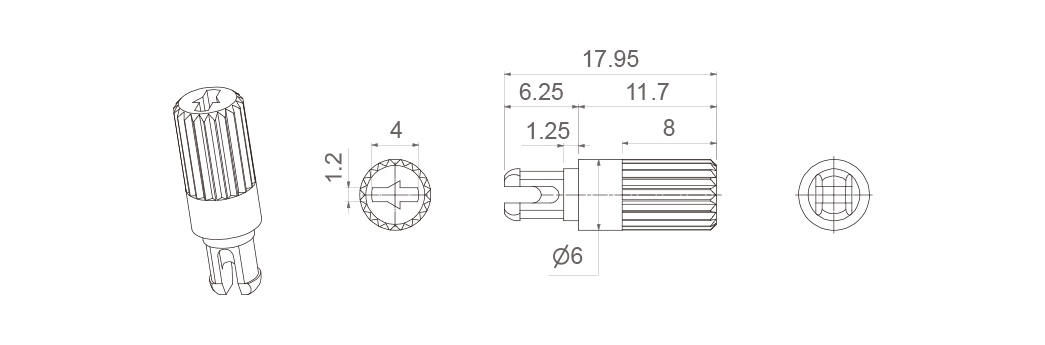

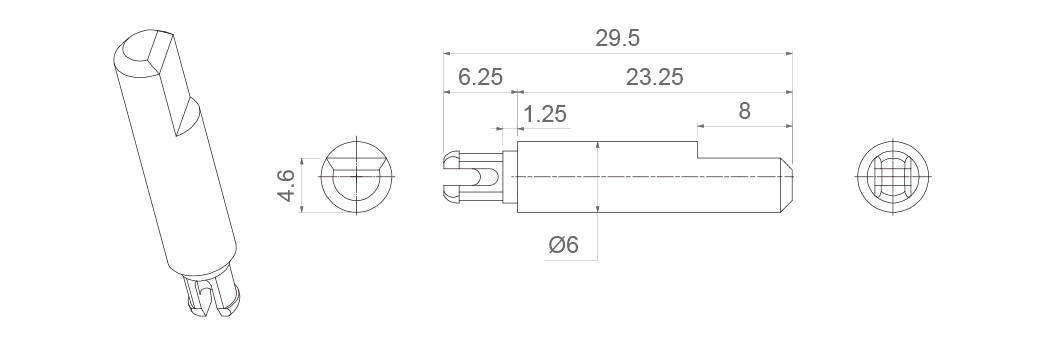

Shaft	14042	14065	14117	14056	14081	14187	14251	14067	14008	14015
D Dimension	7.05	11.50	11.70	12.25	18.25	18.75	18.75	27.75	23.25	23.25

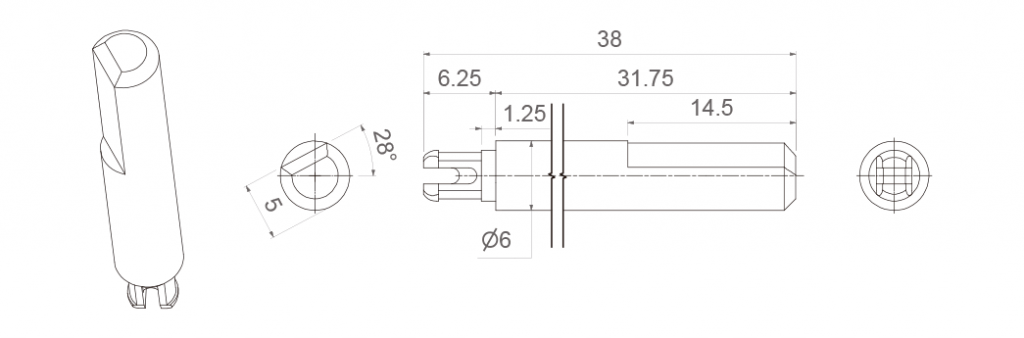

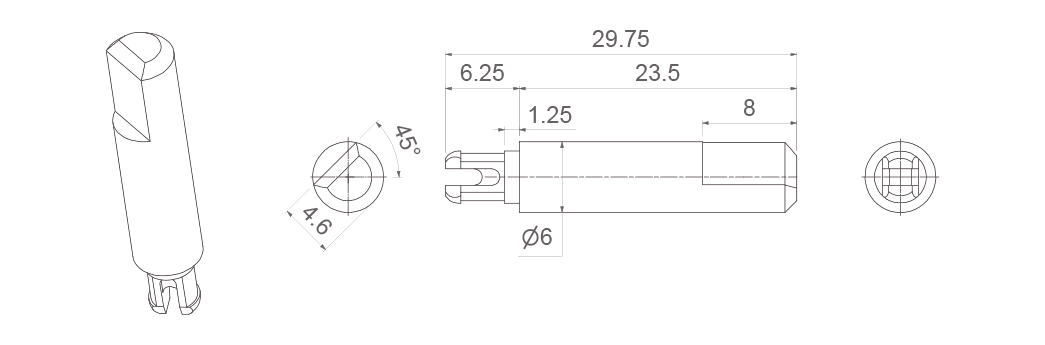

Shaft	14015	14066	14084	14250	14072	14073
D Dimension	23.25	23.50	23.50	25.00	31.75	38.50

14008

14015

14042

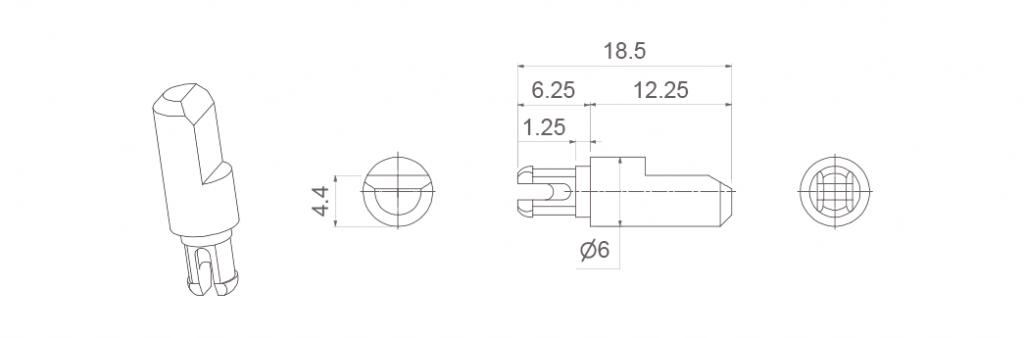

14056

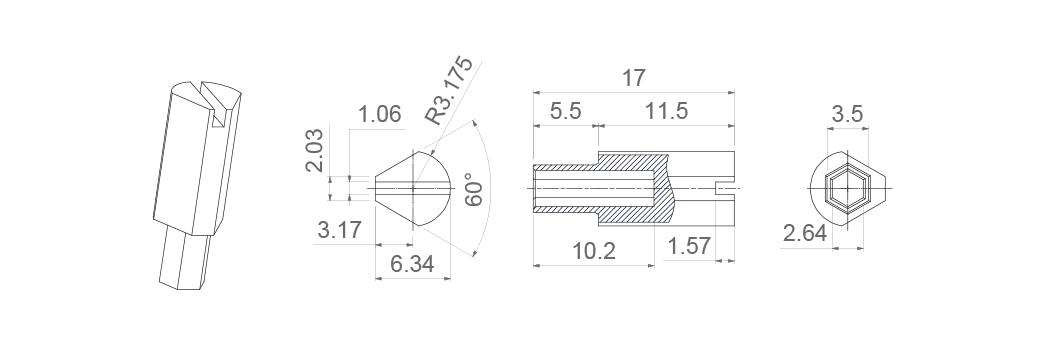

14065 (Designed for E rotor)

14065 3.17 1.06 5 4 ° 6.25 L Total Length 3 . 8 R 3 11.70 14117 12.25 14056 18.25 14081 18.75 14187 Specifications on this catalog are for reference only, as they are subject to change without notice. 18.75 14251 27.75 14067 (H is set by the potentiometer model. See page 5) 23.25 14008 23.25 14015 14042 14056 7.05 6.25 13.3 1.25 6.35 6.35 2.5 6 (Designed for E rotor)

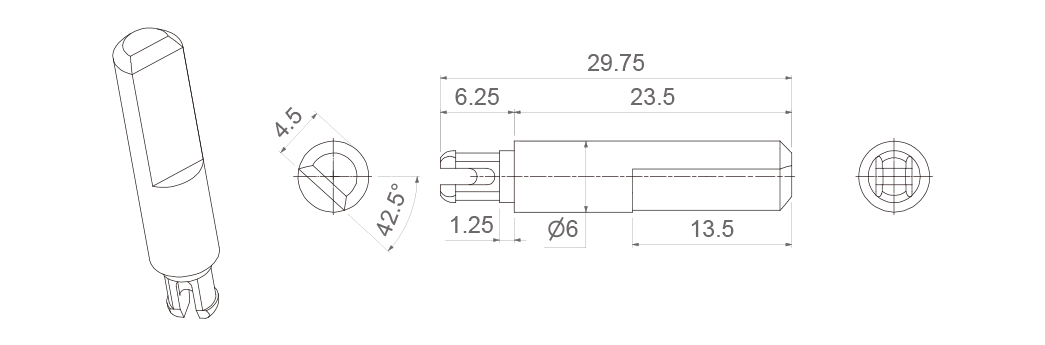

14066

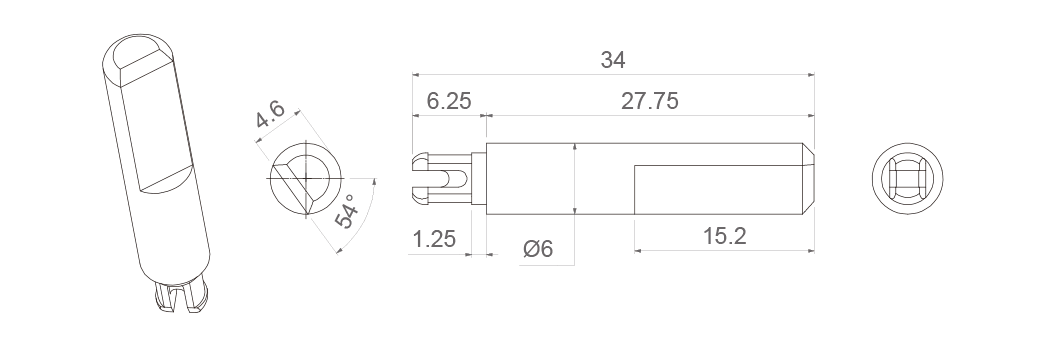

14067

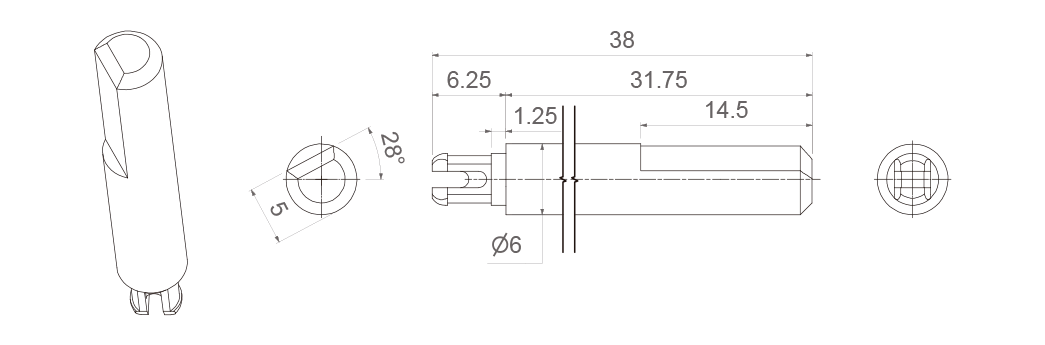

14072

14073

14081

14084

14117

14187

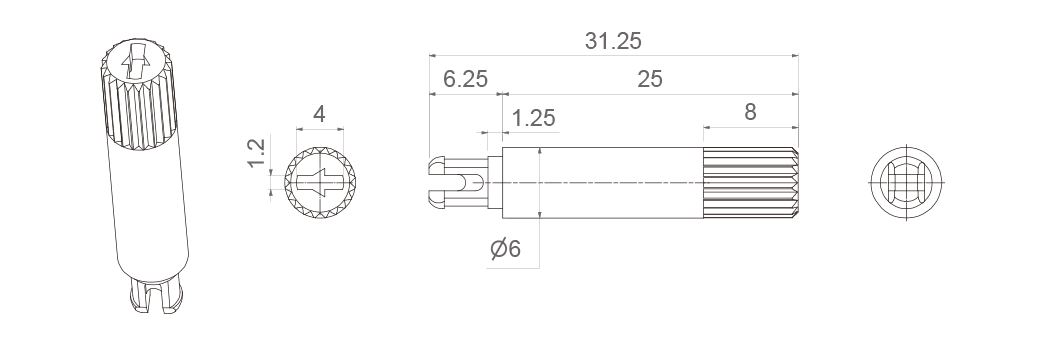

14250

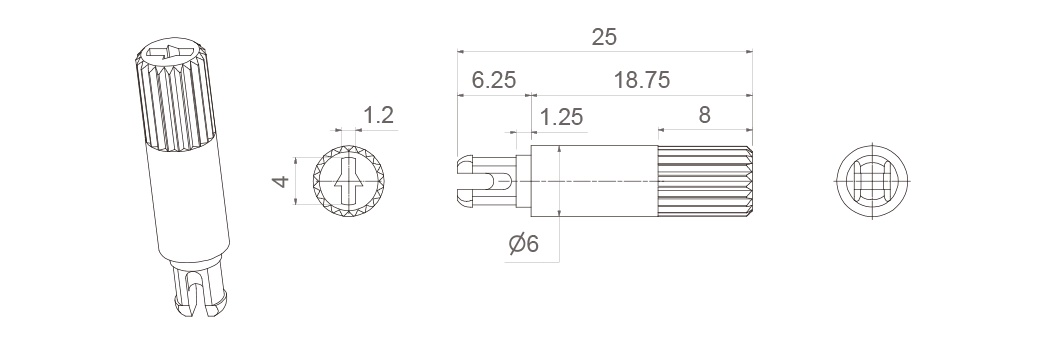

14251
