Bulk packaging
| Potentiometer model | |
|---|---|
| H0 - H2,5 - H5 - HP - V12,5 - V12,5x5 - V15 - V15CFF | |
| With shaft or thumbwheel inserted? | None, only potentiometers. |
| pieces per small box (150 x 100 x 70) | 200 |
| Pieces per bigger box (250 x 150 x70, CG on description) | 700 |
| 14003, 14117, 14042,14056, 14065 | |
| pieces per small box (150 x 100 x 70) | 100 |
| Pieces per bigger box (250 x 150 x70, CG on description) | 400 |
| 14008, 14015, 14066, 14067,14072, 14073, 14081, 14084,14187, 14250. | |
| pieces per small box (150 x 100 x 70) | 75 |
| Pieces per bigger box (250 x 150 x70, CG on description) | To be determined. |
| Potentiometer model | With shaft or thumbwheel inserted? | pieces per small box (150 x 100 x 70) | Pieces per bigger box (250 x 150 x70, CG on description) |
|---|---|---|---|
| H0 - H2,5 - H5 - HP - V12,5 - V12,5x5 - V15 - V15CFF | None, only potentiometers. | 200 | 700 |
| 14003, 14117, 14042,14056, 14065 | 100 | 400 | |
| 14008, 14015, 14066, 14067,14072, 14073, 14081, 14084,14187, 14250. | 75 | To be determined. |
Tape & Reel Packaging
| Potentiometer model | |
|---|---|
| VSMD | |
| With thumbwheel inserted? | None, only potentiometers |
| 13” Reel (Standard), with 24mm width tape | 500 pcs per reel, 16mmstep between cavities. |
| 15” Reel, with 24mm width tape | 800 pcs per reel, 16mmstep between cavities. |
| 14003 | |
| 13” Reel (Standard), with 24mm width tape | 450 pcs per reel, 16mmstep between cavities. |
| 15” Reel, with 24mm width tape | 750 pcs per reel, 16mmstep between cavities. |
| VSMD.. CY | |
| With thumbwheel inserted? | None, only potentiometers. |
| 13” Reel (Standard), with 24mm width tape | 350 pcs per reel, 20mmstep between cavities. |
| 15” Reel, with 24mm width tape | 500 pcs per reel, 20mmstep between cavities. |
| 14003 | |
| 13” Reel (Standard), with 24mm width tape | 350 pcs per reel, 20mmstep between cavities. |
| 15” Reel, with 24mm width tape | 450 pcs per reel, 20mmstep between cavities. |
| Potentiometer model | With thumbwheel inserted? | 13” Reel (Standard), with 24mm width tape | 15” Reel, with 24mm width tape |
|---|---|---|---|
| VSMD | None, only potentiometers | 500 pcs per reel, 16mmstep between cavities. | 800 pcs per reel, 16mmstep between cavities. |
| 14003 | 450 pcs per reel, 16mmstep between cavities. | 750 pcs per reel, 16mmstep between cavities. | |
| VSMD.. CY | None, only potentiometers. | 350 pcs per reel, 20mmstep between cavities. | 500 pcs per reel, 20mmstep between cavities. |
| 14003 | 350 pcs per reel, 20mmstep between cavities. | 450 pcs per reel, 20mmstep between cavities. |
Sticker on component available on request.

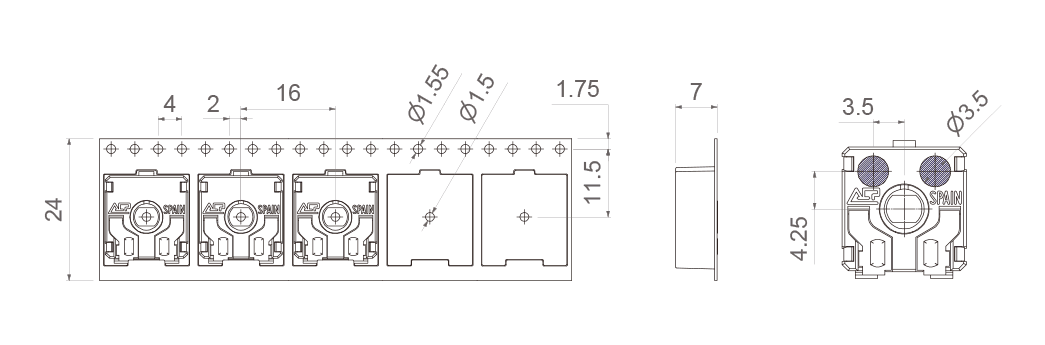

VSMD-T&R

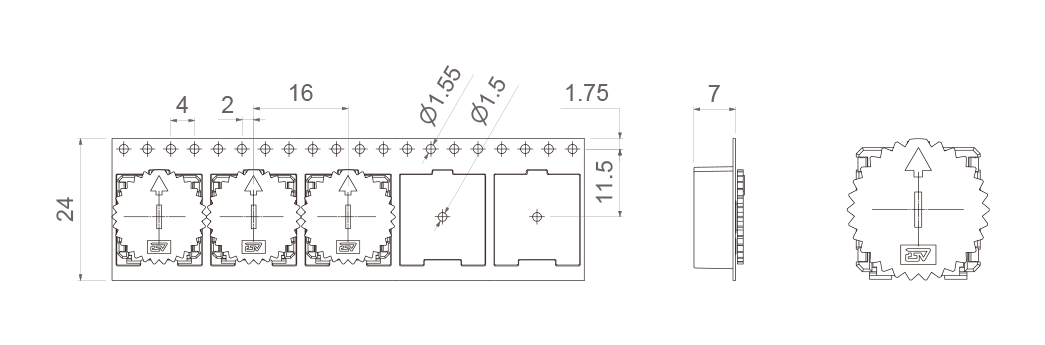

VSMD-T&R...WT-14003

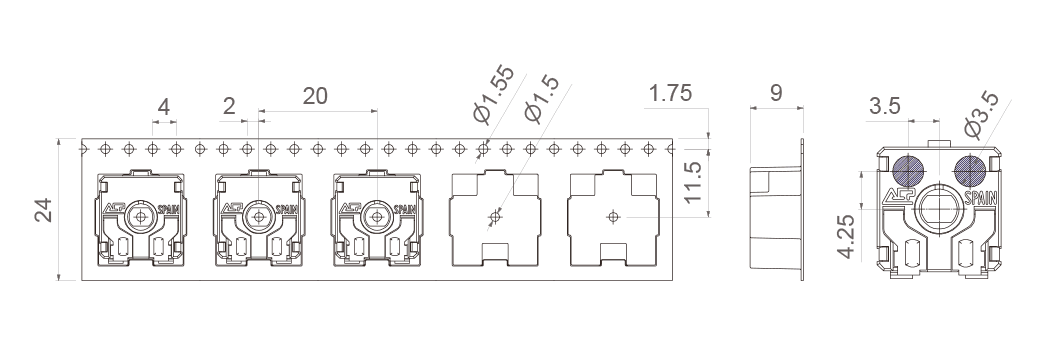

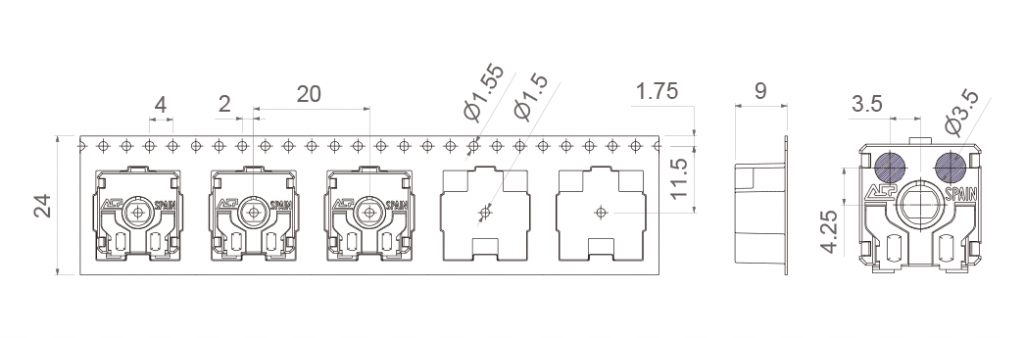

VSMD-T&R...CY

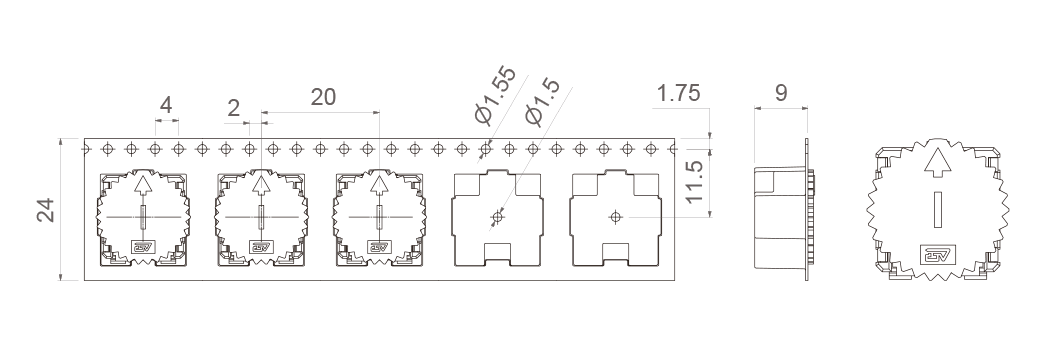

VSMD-T&R...CY WT-14003

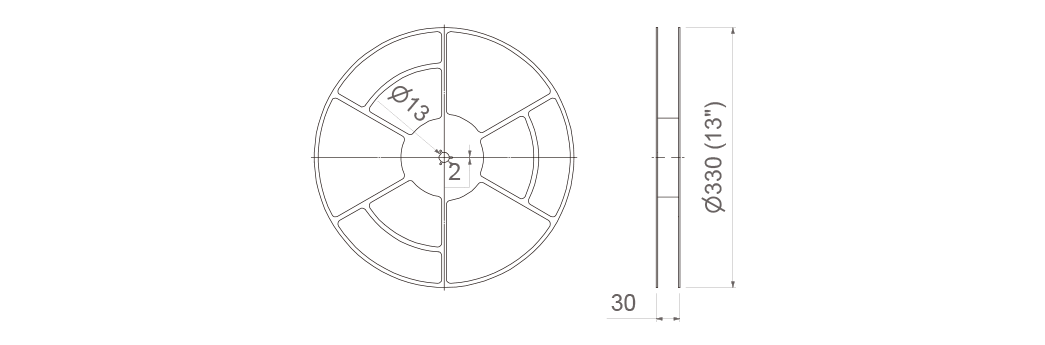

13” Reel

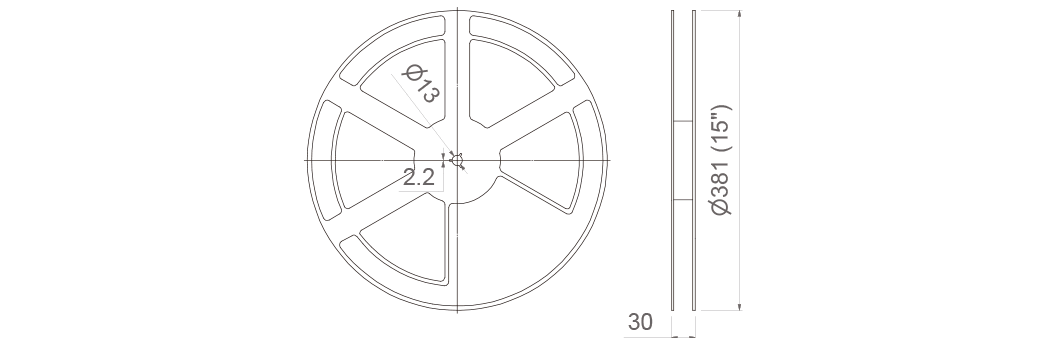

15” Reel
