RS9 Results

Test results

The following typical test results (with 95% confidence) are given at 23ºC ±2ºC and 50% ±25% RH. Maximum linearity after mechanical tests: 4%.

RS9 Through-hole and SMD
Test conditions Typical variation of nominal resistance
Damp heat 500 h. at 40°C and 95% RH ±20%
Thermal cycles 16 h at 85ºC, plus 2 h at –25ºC ±20%
Load life 1.000 h. at 50°C ±20%
Mechanical life 150.000 cycles at 10 c.p.m. and at 23°C ± 2°C ±20%
Storage (3 years) 3 years at 23°C ± 2°C ±3%

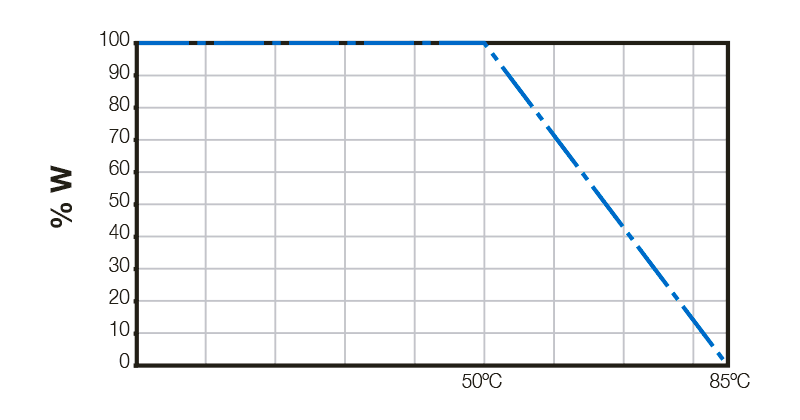

Power derating curve:
Power derating curve:
