Bulk packaging:
| Potentiometer model | With shaft or thumbwheel inserted? | pieces per small box (150 x 100 x 70) | Pieces per bigger box (250 x 150 x70, CG on description) |
|---|---|---|---|
| H2,5 - H3,8 - HS3,8 - H5 HSMD - V7,5 - V10 VK10 - VR10 - VSMD |
None, only potentiometers. | 500 | 1500 |
| 9002 | 250 | 1000 | |
| 9004, 9005, 9006, 9009, 9010, 9018, 9039, 9041, 9047, 9048, 9051, 9053, 9054, 9055, 9056, 9059, 9060, 9061, 9063, 9064, 9067, 9070. |
200 | 1000 in general | |
| 9071, 9072 | 400 | 1.250 |
Tape & Reel packaging:
| Potentiometer model | With thumbwheel inserted? | 13” Reel (Standard), with 24mm width tape | 15” Reel, with 24mm width tape |
|---|---|---|---|
| VSMD | None, only potentiometers | 900 pcs per reel, 12mm step between cavities. |
1.250 pcs per reel, 12mm step between cavities. |
| 9002 | 700 pcs per reel, 12mm step between cavities. |
950 pcs per reel, 12mm step between cavities. |
|
| VSMD...CY | None, only potentiometers | 750 pcs per reel, 12mm step between cavities. |
1.000 pcs per reel, 12mm step between cavities. |
| 9002 | 550 pcs per reel, 12mm step between cavities. |
800 pcs per reel, 12mm step between cavities. |
|
| HSMD | None, only potentiometers | 350 pcs per reel, 16 mm step between cavities |
475 pcs per reel, 16 mm step between cavities |
| 9002 | Under Request | Under Request | |
| HS3,8...PIP - H2,5...PIP TP25 - H5...PIP TP25 | None, only potentiometers OR 9002 | 250 | 350 |
| V7,5...PIP - V10...PIP - V10...PIP TP25 - VR10...PIP | None, only potentiometers OR 9002 | 250 | 350 |

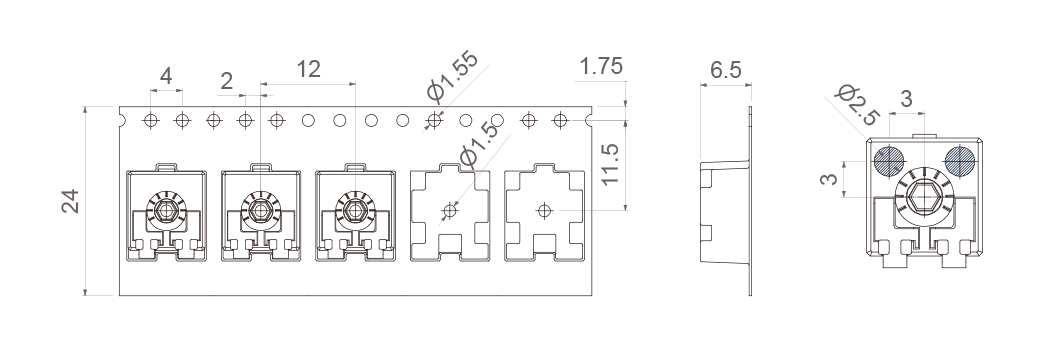

VSMD-T&R

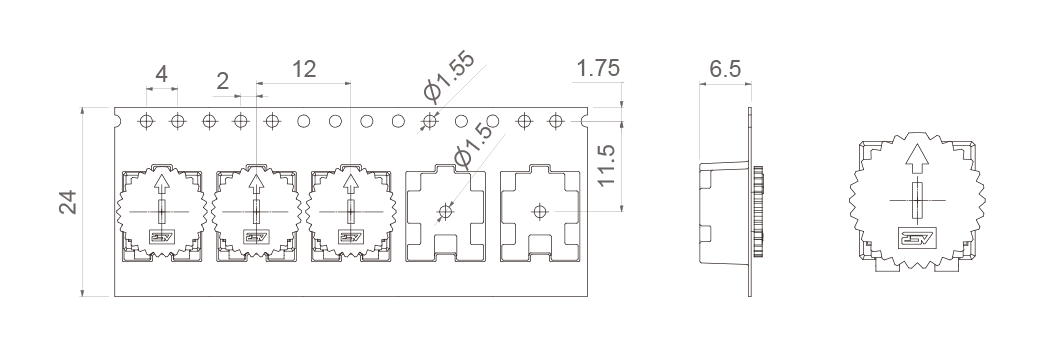

VSMD-T&R…WT-9002

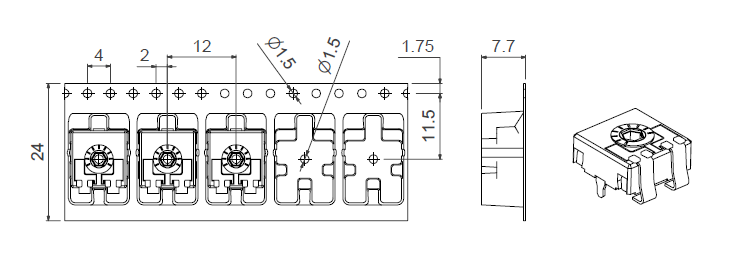

VSMD-T&R...CY

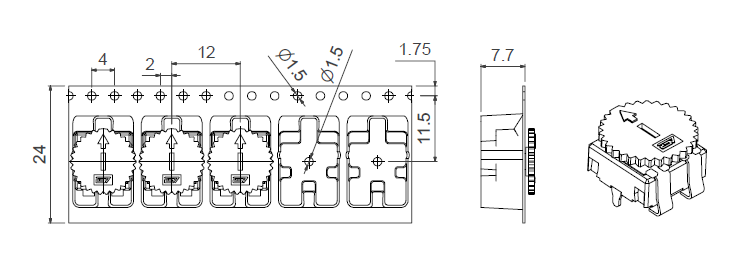

VSMD-T&R…CY WT-9002

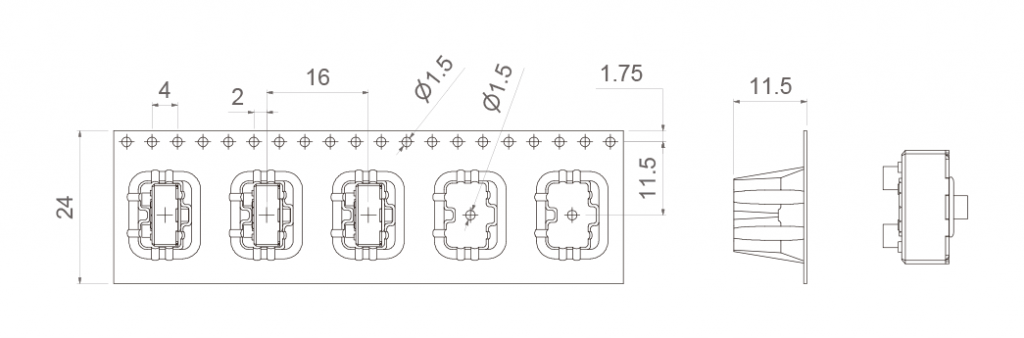

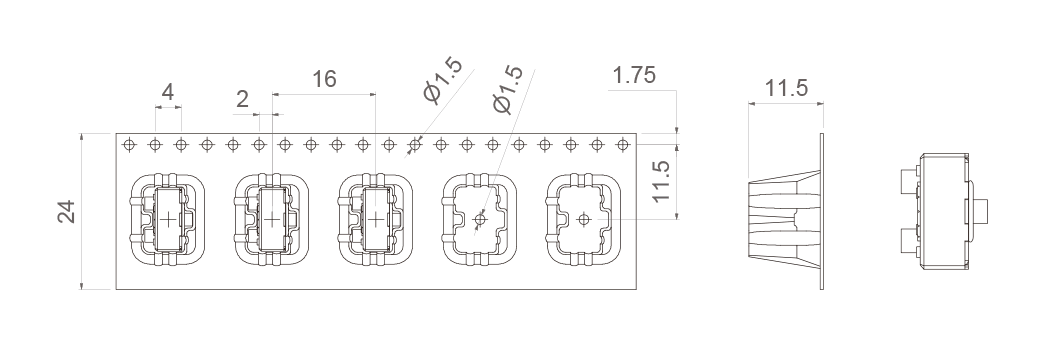

HSMD-T&R

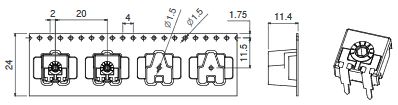

V7,5-T&R...PIP
V7,5-T&R...PIP WT-9002

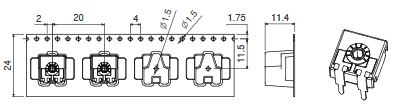

V10-T&R...PIP

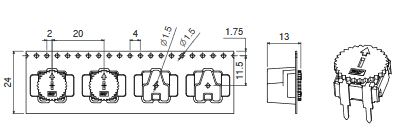

V10-T&R...PIP WT-9002

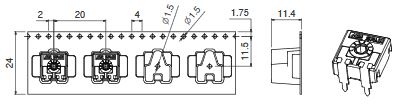

V10-T&R...PIP TP25
V10-T&R...PIP TP25 WT-9002

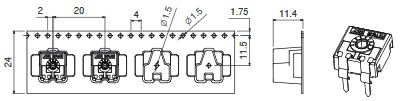

VR10-T&R...PIP

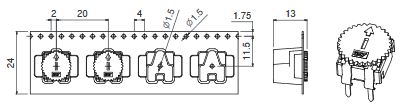

VR10-T&R...PIP WT-9002

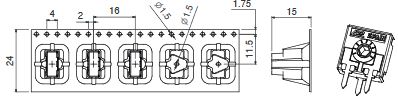

HS3,8-T&R...PIP

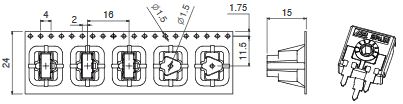

H5-T&R...PIP TP25

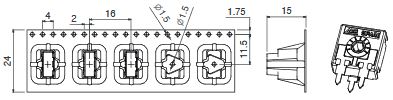

H2,5-T&R...PIP TP25

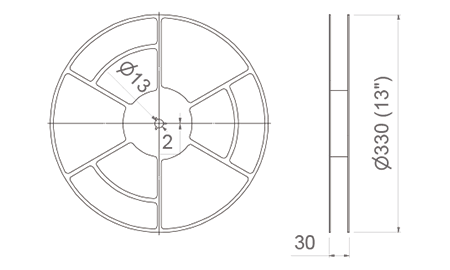

13”Reel

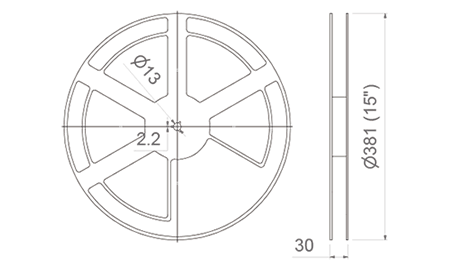

15”Reel
