RS14 Shafts

Shafts are available in different colors (color chart in “how to order” section) and with self-extinguishable property, according to UL 94 V-0, under request. ACP can study special shaft designs.
Shafts can be sold separately or delivered already mounted on the potentiometer at ACP.

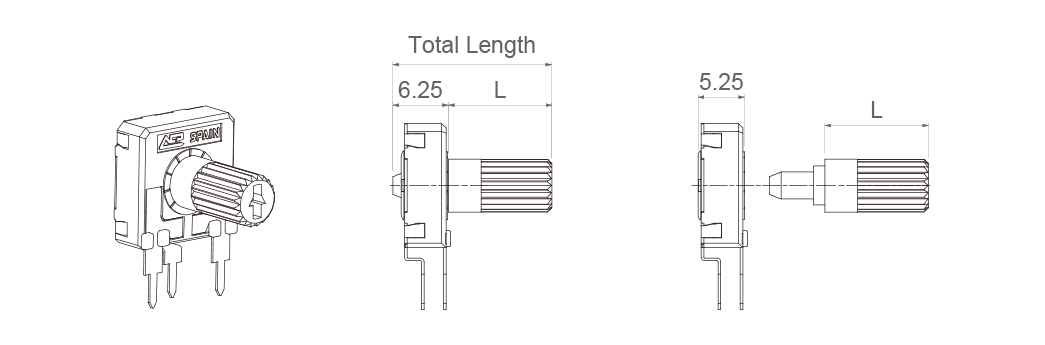

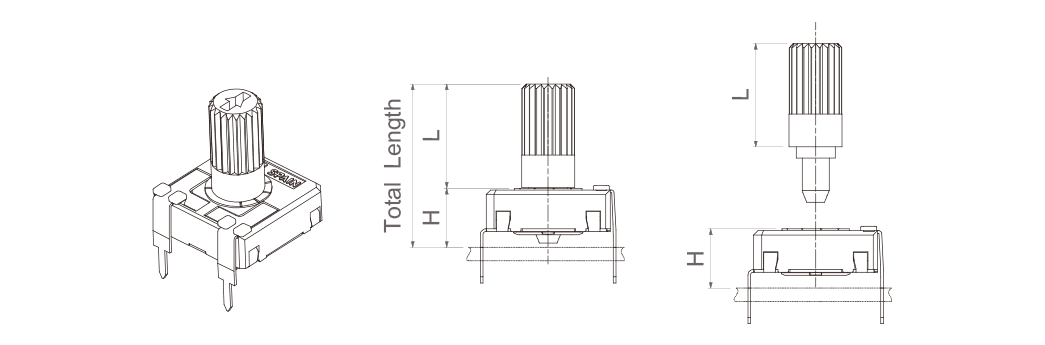

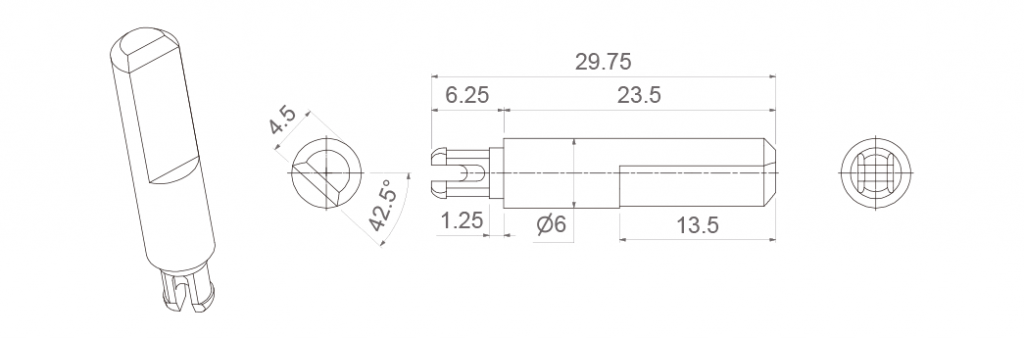

When a shaft is mounted on a potentiometer, the distance from the top of the potentiometer to the top of the shaft is marked with “L” in
the table below, as shown in the drawings:
