Bulk packaging:
| Potentiometer model | With shaft or thumbwheel inserted? | pieces per small box (150 x 100 x 70) | Pieces per bigger box (250 x 150 x70, CG on description) |
|---|---|---|---|
| H2,5 - H4 - H5- HA5- HL5- H0 HC0 - V12,5 - V15 - VA12,5-VL12,5 -VJ15 - V17,5* VD11*-VD7,5* - VR12,5 |
None, only potentiometers. | 200 150 for models with* |
700 600 for VJ15 - V17,5 - VD7,5 500 for VD11 |
| 14003, 14117, 14042, 14056, 14065 |
100 | 400 350 for models with* |
|
| 14008, 14015, 14066, 14067, 14072, 14073, 14081, 14084, 14187, 14250. |
75 | To be determined. | |
| For models with * and an inserted accessory, please, inquire about the quantity per box in that case. | |||
Tape & Reel packaging:
| Potentiometer model | With thumbwheel inserted? | 13” Reel (Standard), with 24mm width tape | 15” Reel, with 24mm width tape |
|---|---|---|---|
| VSMD | None, only potentiometers | 500 pcs per reel, 16mm step between cavities. |
800 pcs per reel, 16mm step between cavities. |
| 14003 | 450 pcs per reel, 16mm step between cavities. |
750 pcs per reel, 16mm step between cavities. |
|
| VSMD.. CY | None, only potentiometers. | 350 pcs per reel, 20mm step between cavities. |
500 pcs per reel, 20mm step between cavities. |
| 14003 | 350 pcs per reel, 20mm step between cavities. |
450 pcs per reel, 20mm step between cavities. |

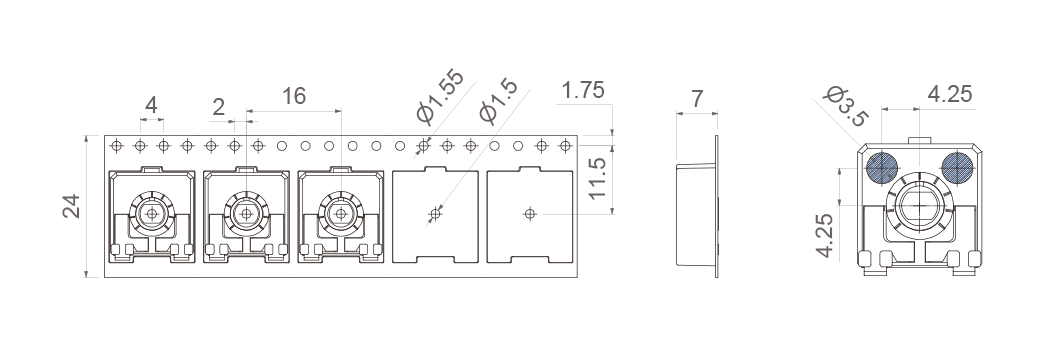

VSMD-T&R

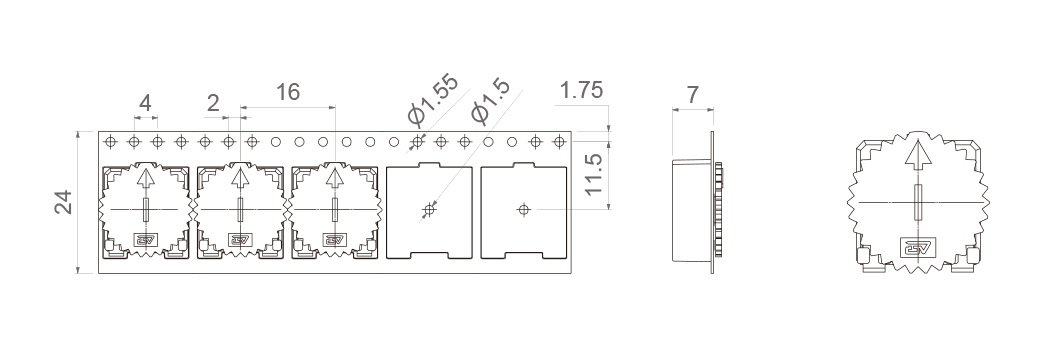

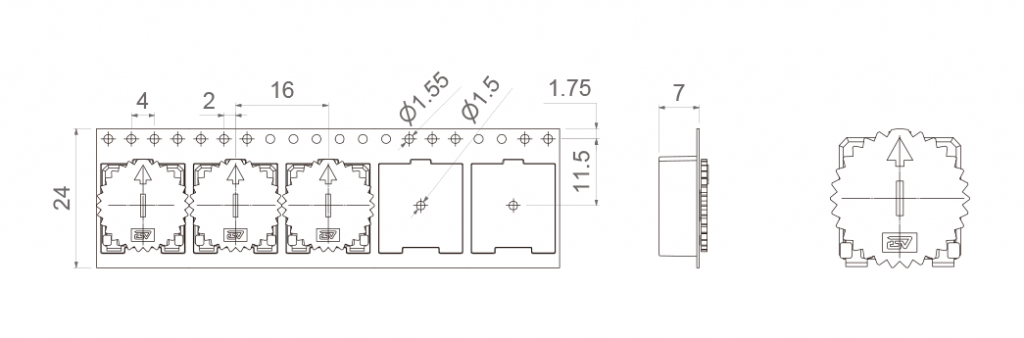

VSMD-T&R…WT-14003

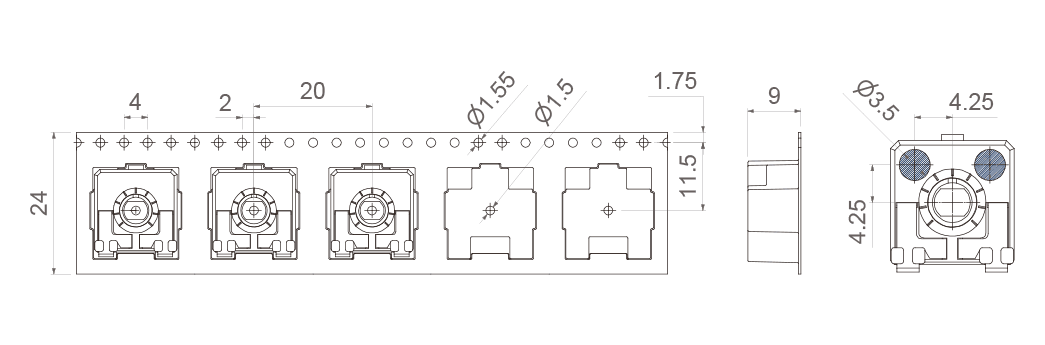

VSMD-T&R … CY

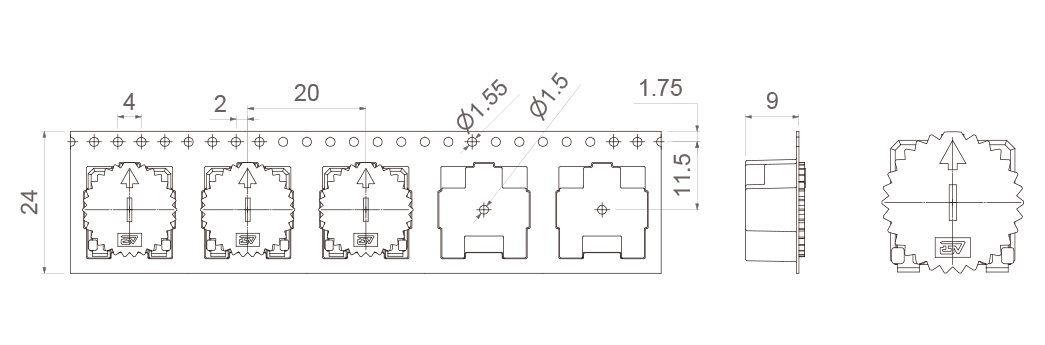

VSMD-T&R…CY WT-14003

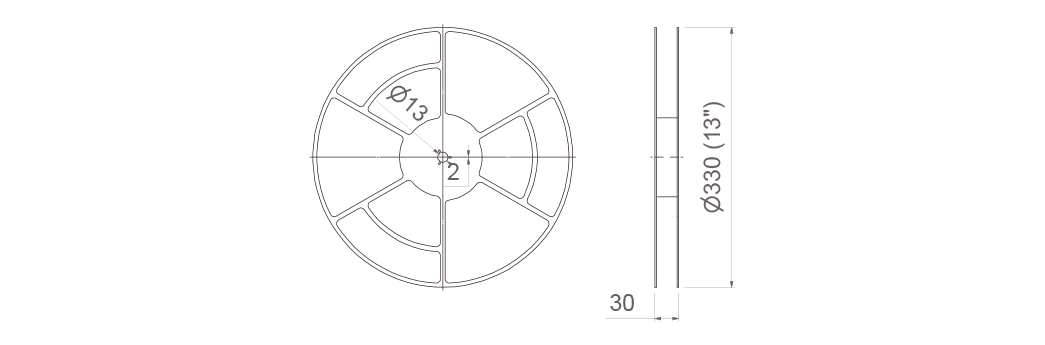

13” Reel

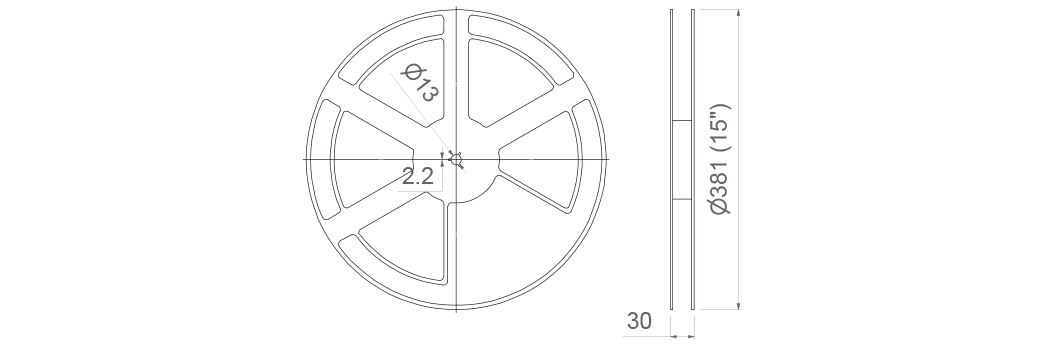

15” Reel
