Shafts are available in different colors (color chart in “how to order” section) and with self-extinguishable property, according to UL 94 V-0, under request. ACP can study special shaft designs.
D dimension is the distance from the housing to the top of the shaft, as shown in the different models.

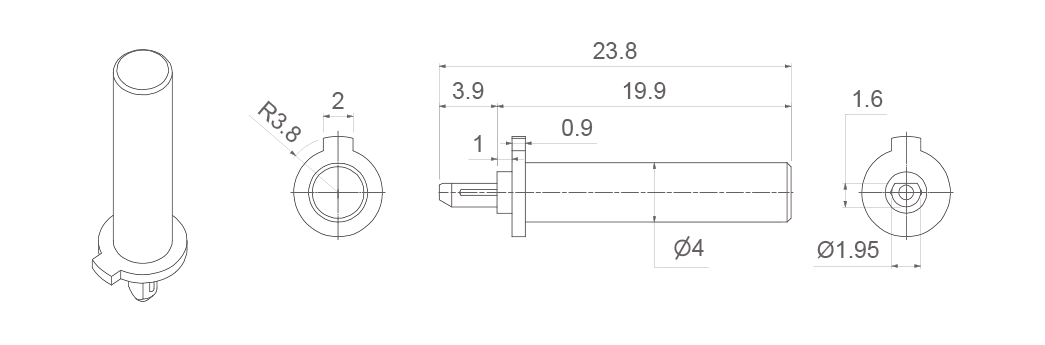

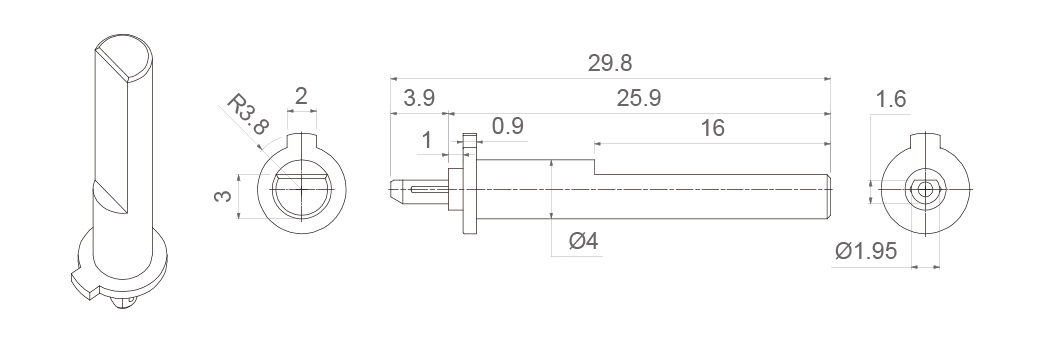

Shaft | 9019 | 9020 |
D Dimension | 17.5 | 23.5 |
