CAR14 – CER14 Shafts

Home / Catalogue / Potentiometers / CAR14 – CER14 / CAR14 – CER14 Shafts

Shafts are available in different colors (color chart in “how to order” section) and with self-extinguishable property, according to UL 94 V-0, under request. ACP can study special shaft designs.
Shafts can be sold separately or delivered already mounted on the potentiometer at ACP.

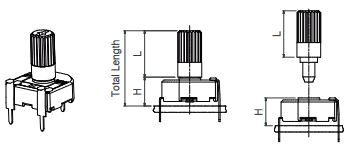

When a shaft is mounted, the distance from the top of the potentiometer to the top of the shaft is marked with “L” in the table below, as shown in the drawings:

H Potentiometer + shaft

Shaft	14042	14065	14117	14056	14081	14187	14251	14067
L Dimension	7.05	11.50	11.70	12.25	18.25	18.75	18.75	27.75

Shaft	14008	14015	14066	14084	14250	14072	14073
L Dimension	23.25	23.25	23.50	23.50	25.00	31.75	38.50

14008

14015

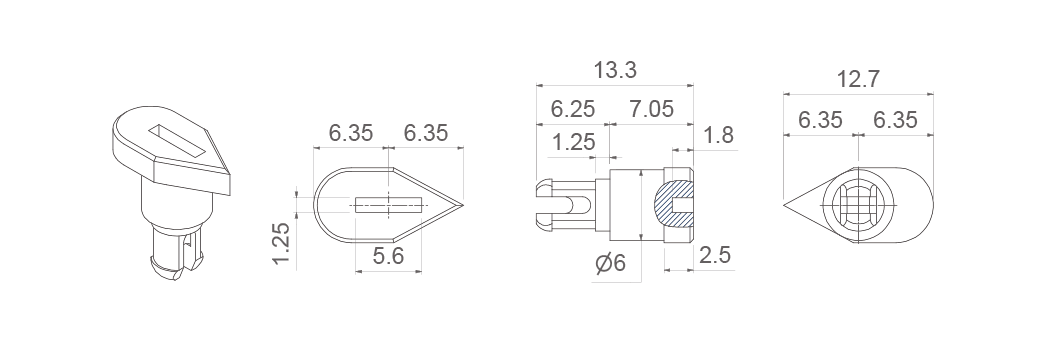

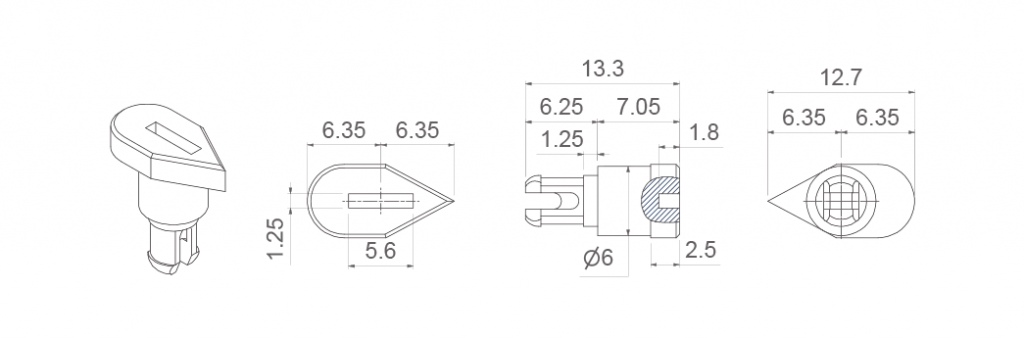

14042

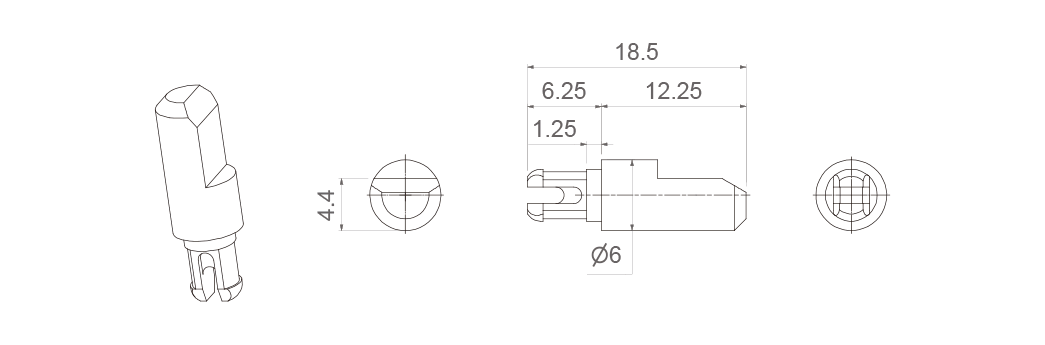

14056

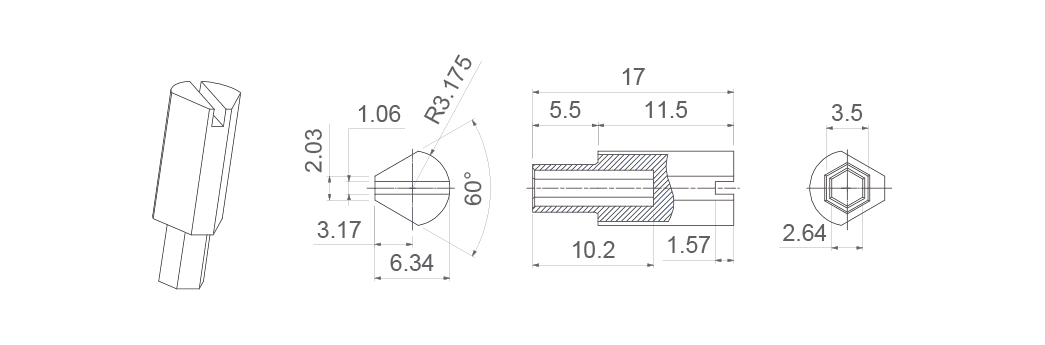

14065 (Designed for E rotor)

14066

14067

14072

14073

14081

14084

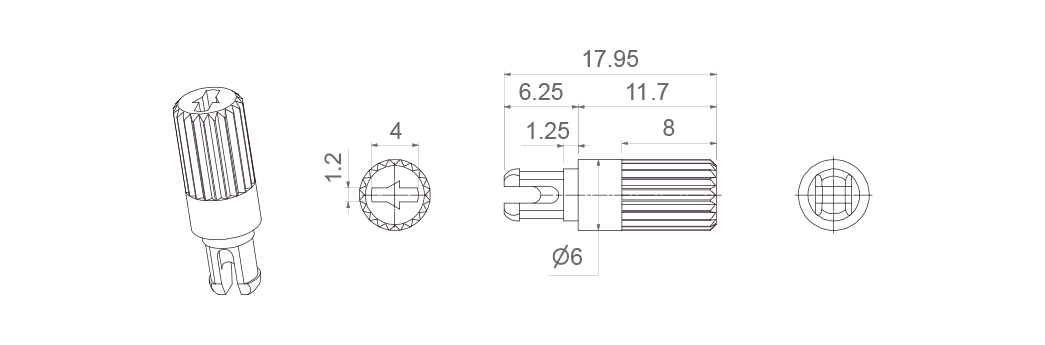

14117

14187

14250

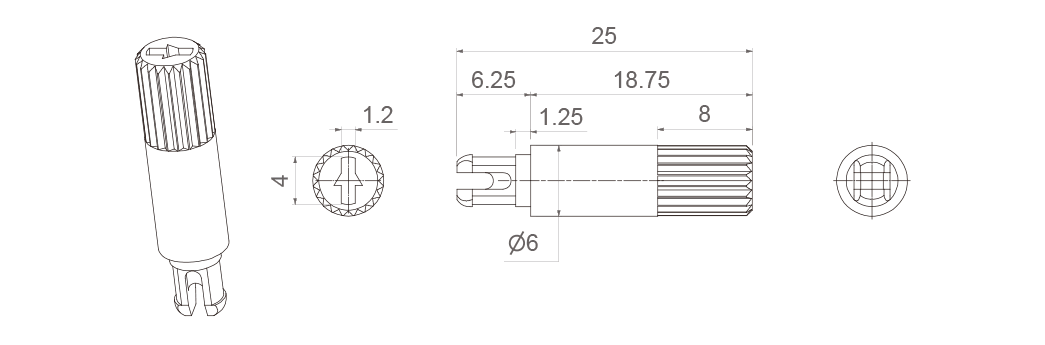

14251
