Shafts are available in different colors (color chart in “how to order” section) and with self-extinguishable property, according to UL 94 V-0, under request. ACP can study special shaft designs.

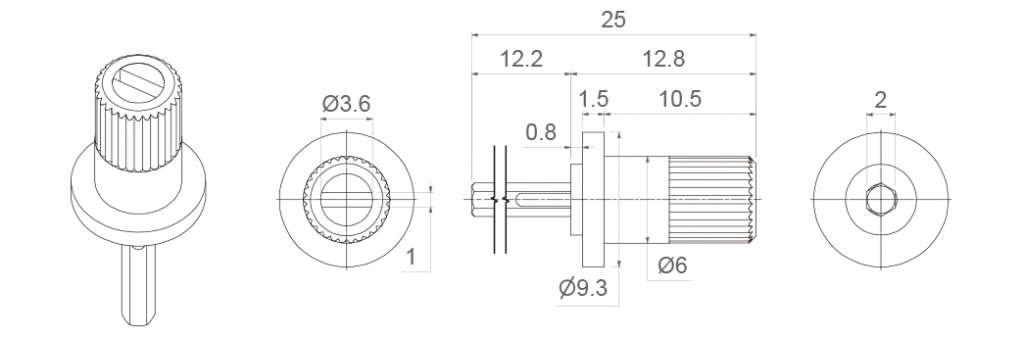

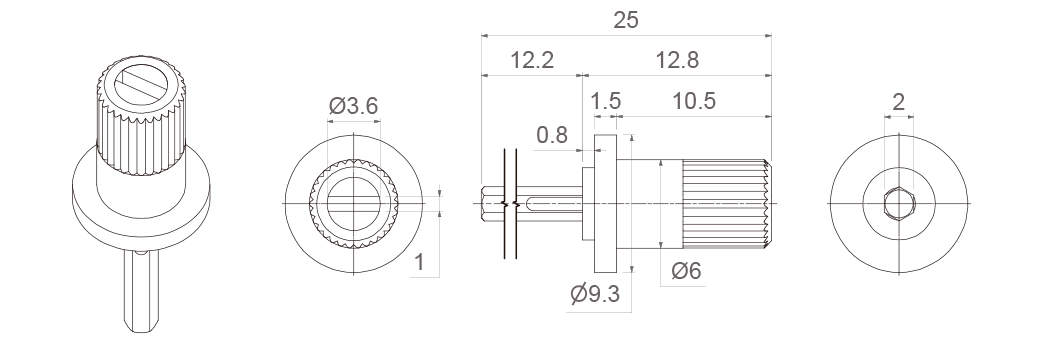

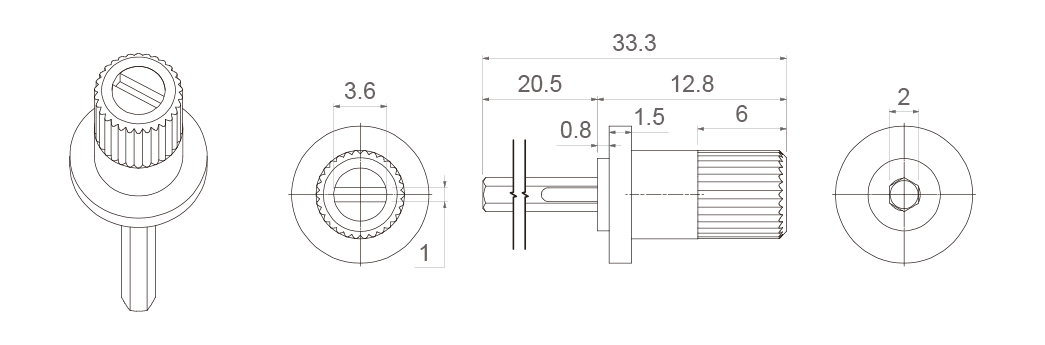

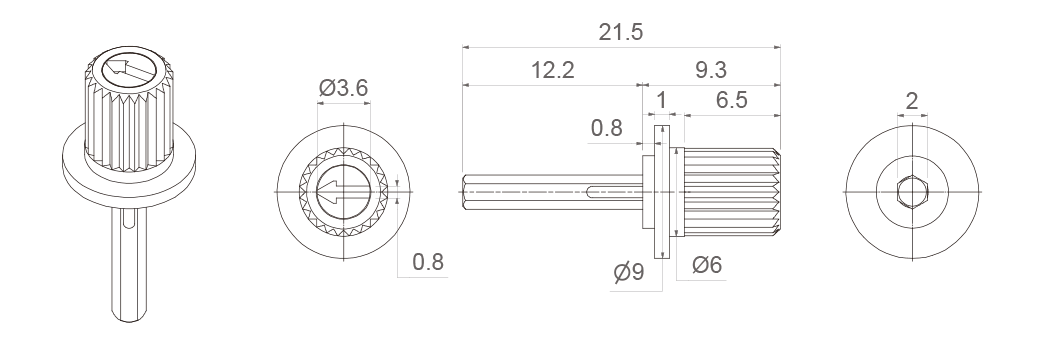

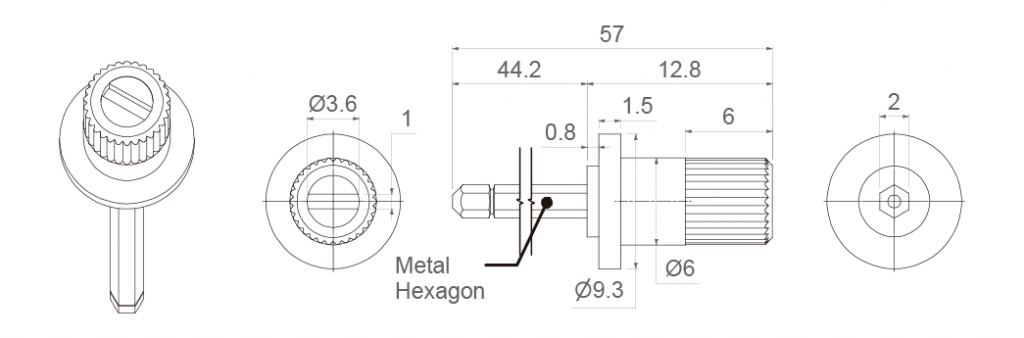

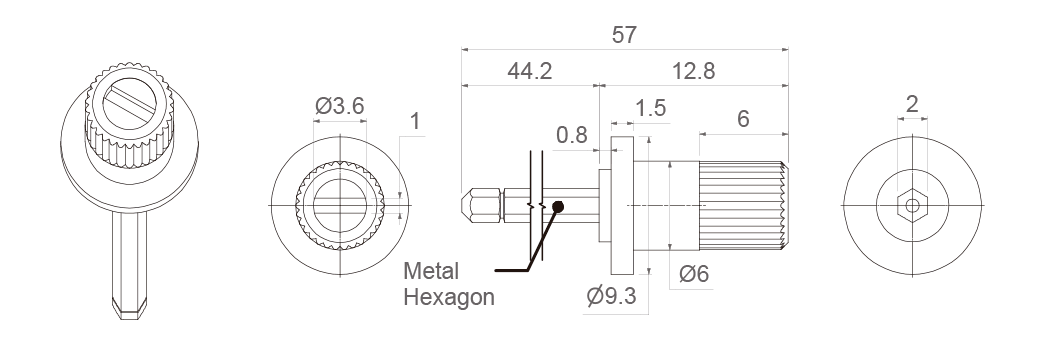

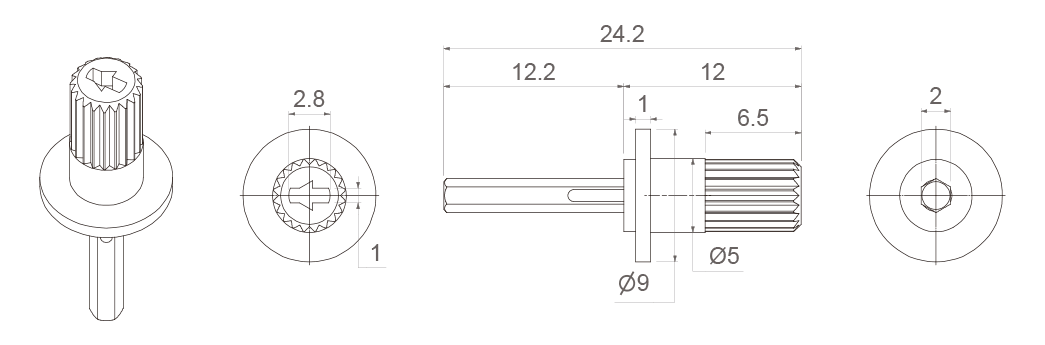

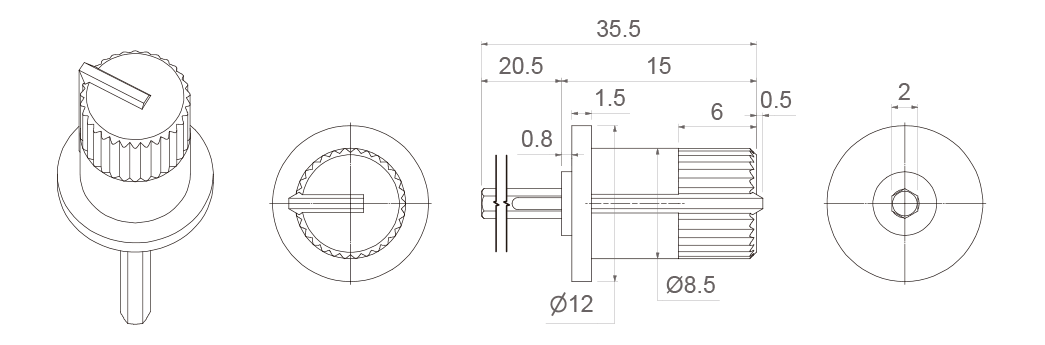

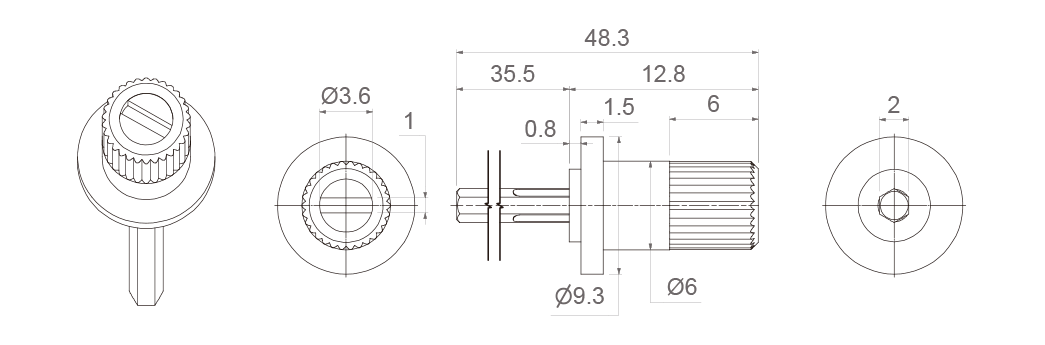

Shafts can be sold separately or delivered already mounted on the potentiometer at ACP. Unless otherwise stated, the arrow in the shafts is in line with the wiper and it points to 50% when assembled with M rotors. When a shaft is mounted on a potentiometer, the distance from the top of the potentiometer to the top of the shaft is marked with “L” in the table below, as shown in the drawings:
