Bulk packaging:
| Potentiometer model | With shaft or thumbwheel inserted? | pieces per small box (150 x 100 x 70) | Pieces per bigger box (250 x 150 x70, CG on description) |
|---|---|---|---|
| H2,5 - V2,5 - V5 - VS5 - HSMD - VSMD - VESMD | None, only potentiometers. | 1.000 | 4.000 |
| 6001, 6030, 6032, 6035, 6037 | 1.000 | 3.000 | |
| 6024, 6025, 6028 | 300 | To be determined. | |
| 6022, 6023, 6031 | 500 | To be determined. |
Tape & Reel packaging:
| Potentiometer model | With thumbwheel inserted? | 13” Reel (Standard), with 24mm width tape | 15” Reel, with 24mm width tape |
|---|---|---|---|
| VSMD | None, only potentiometers | 1.200 pcs per reel, 12mm step between cavities. |
1.700 pcs per reel, 12mm step between cavities. |
| 6030, 6035, 6037 | 750 pcs per reel, 12mm step between cavities. |
1.100 pcs per reel, 12mm step between cavities. |
|
| VESMD | None, only potentiometers | 1.000 pcs per reel, 12mm step between cavities. |
1.500 pcs per reel, 12mm step between cavities. |
| 6030, 6035, 6037 | 700 pcs per reel, 12mm step between cavities. |
1.000 pcs per reel, 12mm step between cavities. |
|
| HSMD | None, only potentiometers. | 750 pcs per reel, 12mm step between cavities. |
1.000 pcs per reel, 12mm step between cavities. |
| With specific thumbwheel. | 700 pcs per reel, 12mm step between cavities. |
1.000 pcs per reel, 12mm step between cavities. |
|
| VS5... PIP | None, only potentiometers. | 900 pcs per reel, 12mm step between cavities. |
1.200 pcs per reel, 12mm step between cavities. |
| The 13” reel is the standard. For the 15” reel, T&R15 is added to the description. | |||

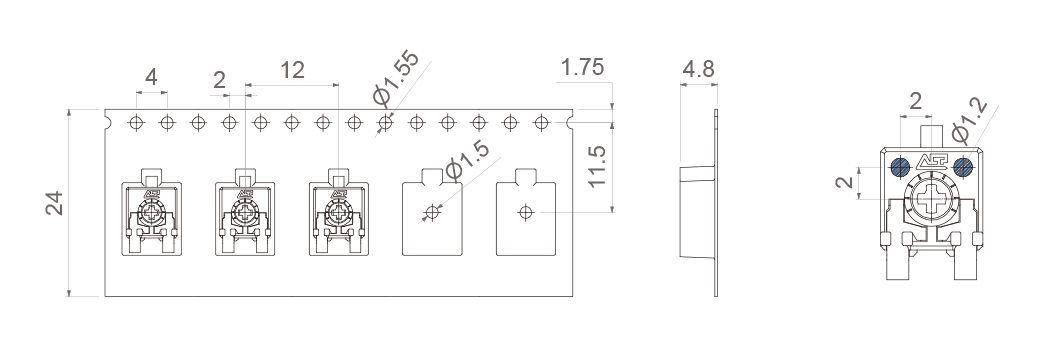

VSMD-T&R

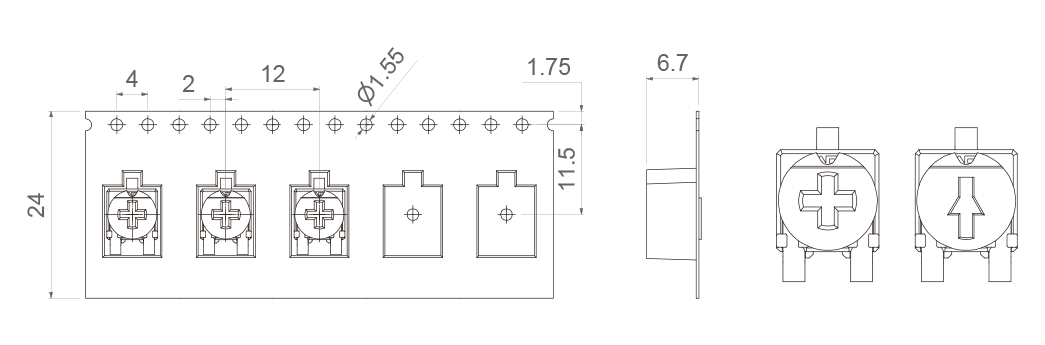

VSMD-T&R…WT-6030 / 6035 / 6037

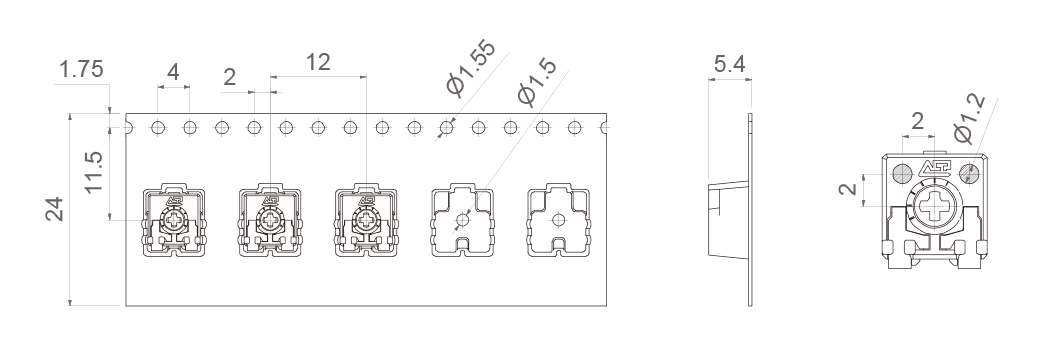

VESMD-T&R

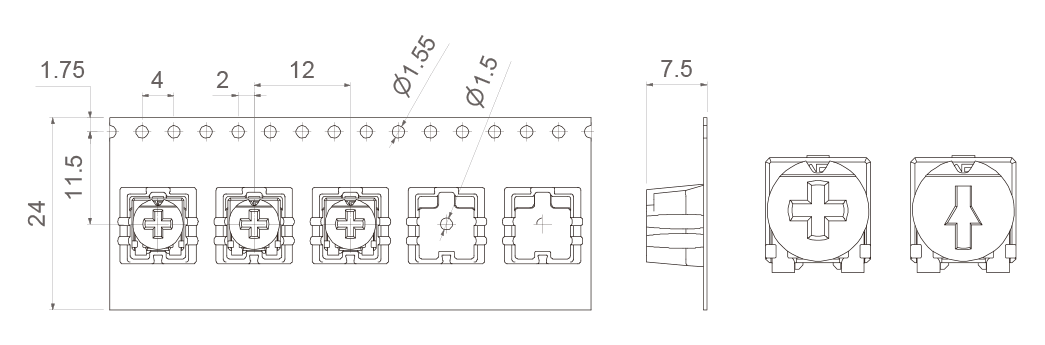

VESMD-T&R…WT-6030 / 6035 / 6037

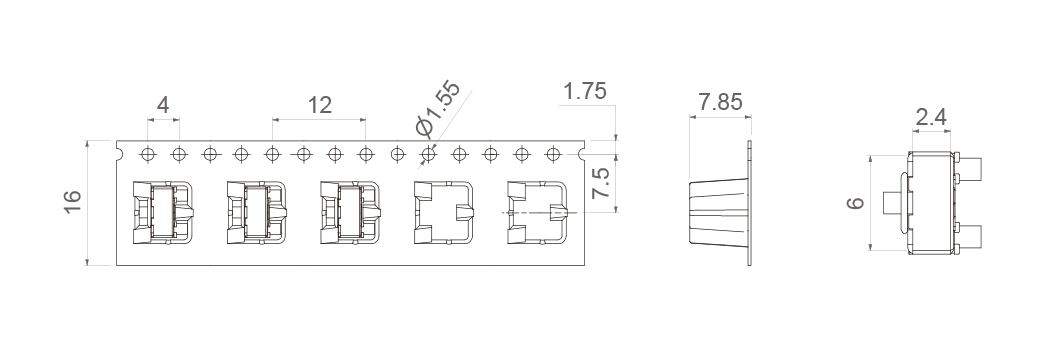

HSMD-T&R

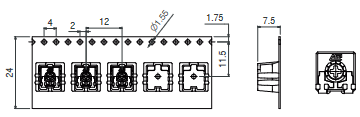

VS5-T&R...PIP

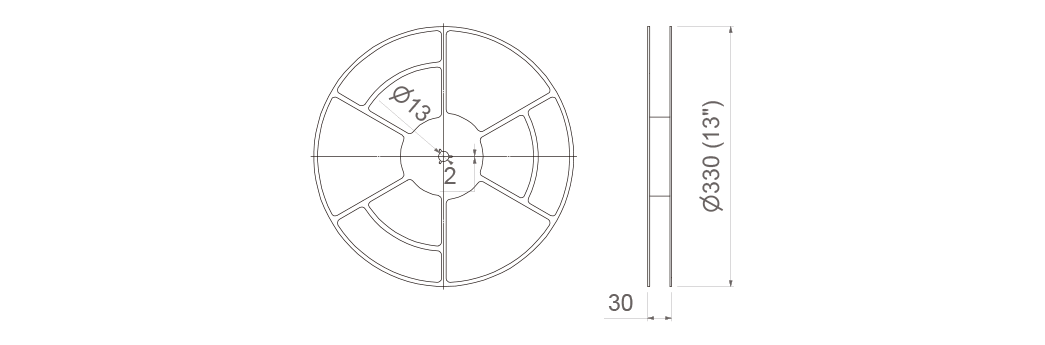

13”Reel

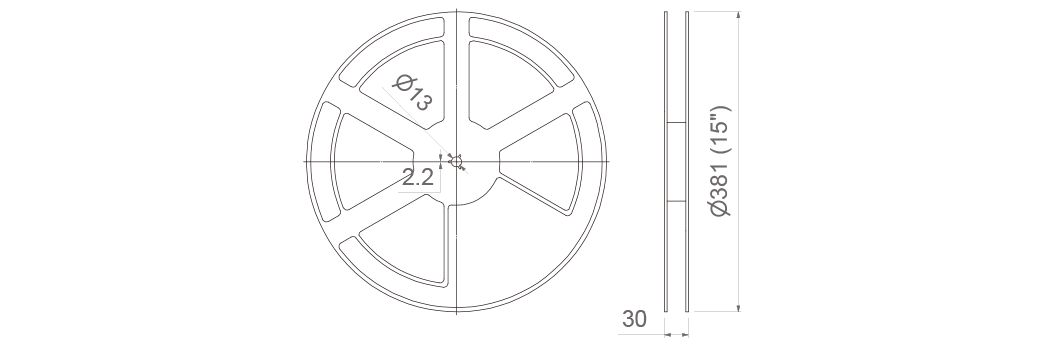

15”Reel
