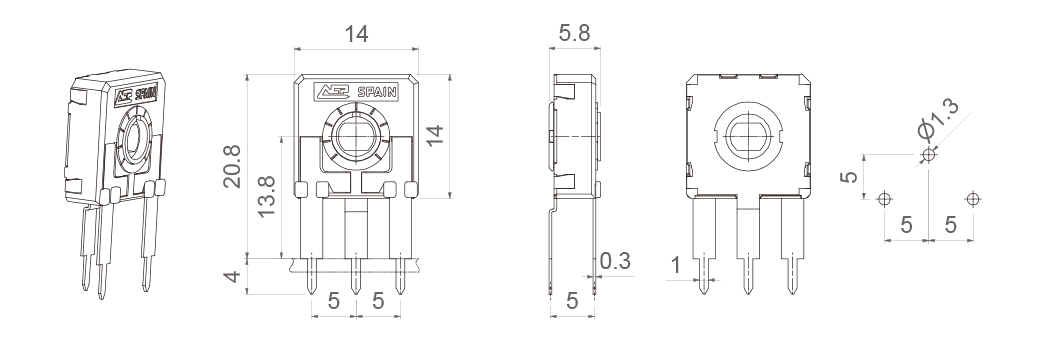

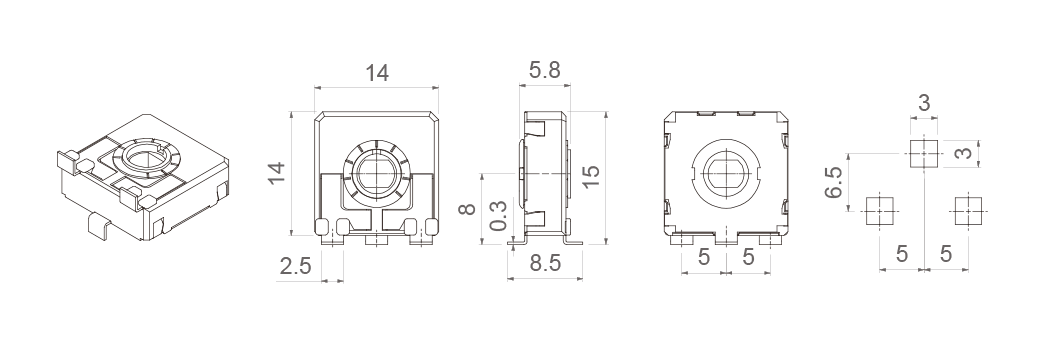

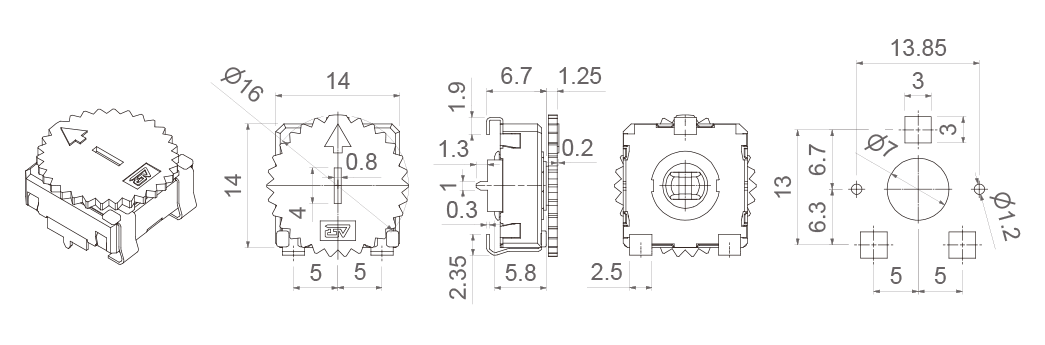

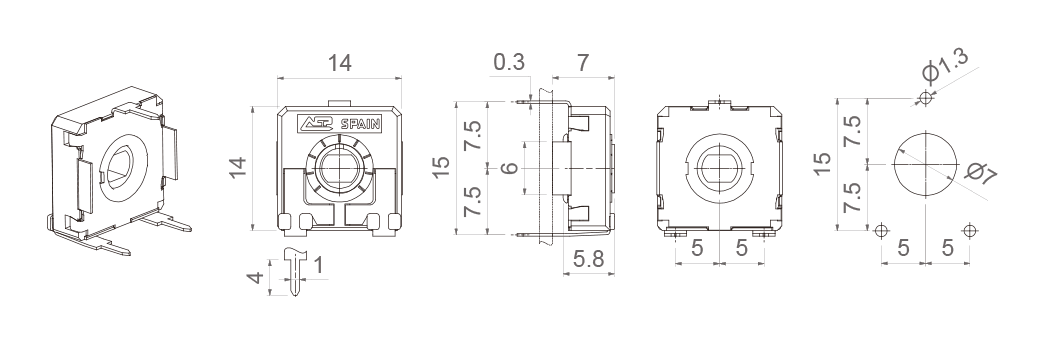

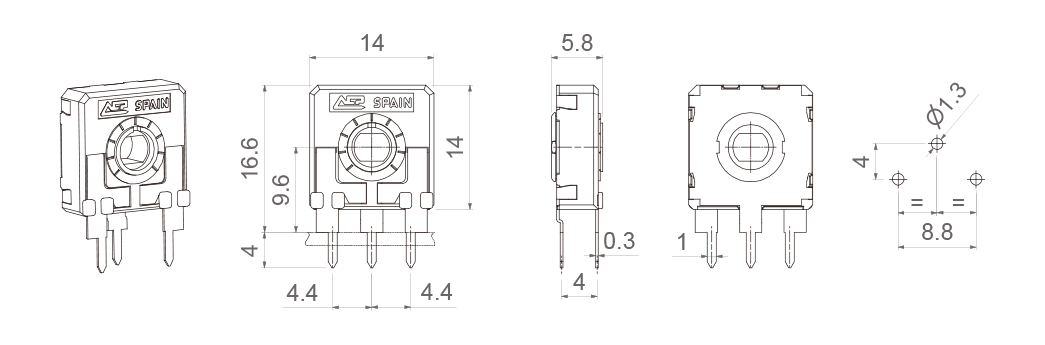

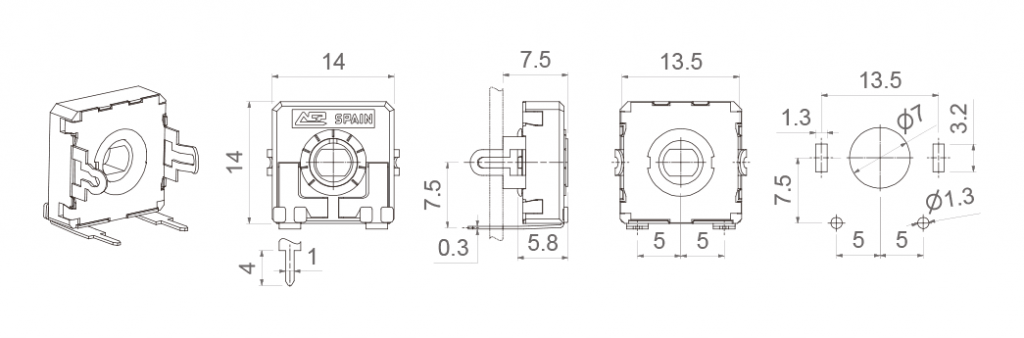

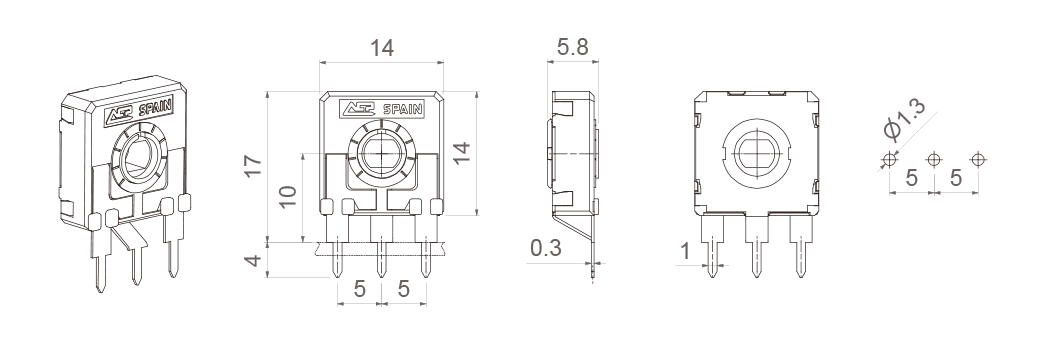

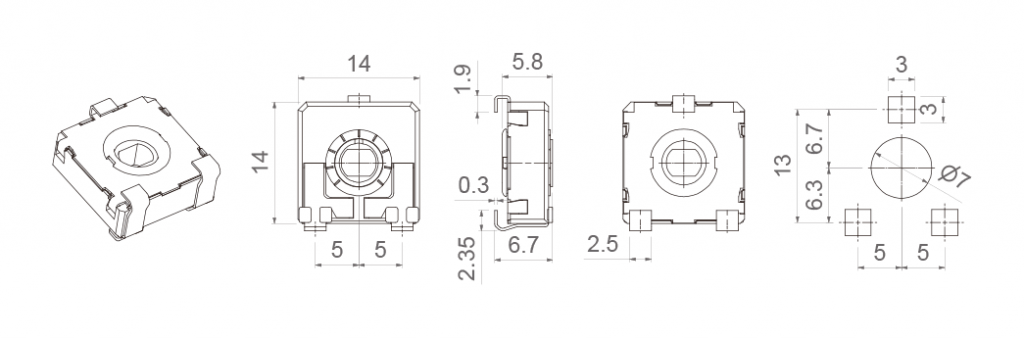

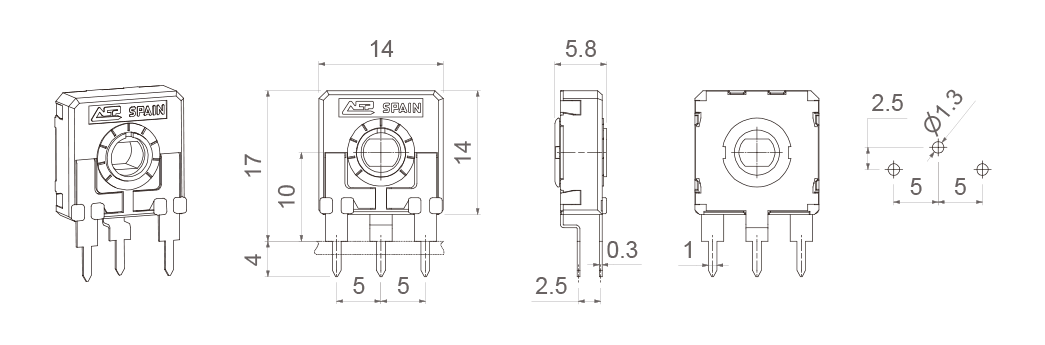

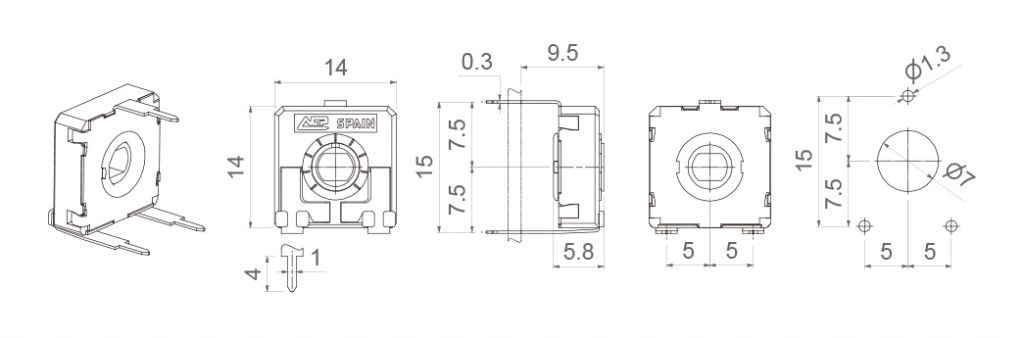

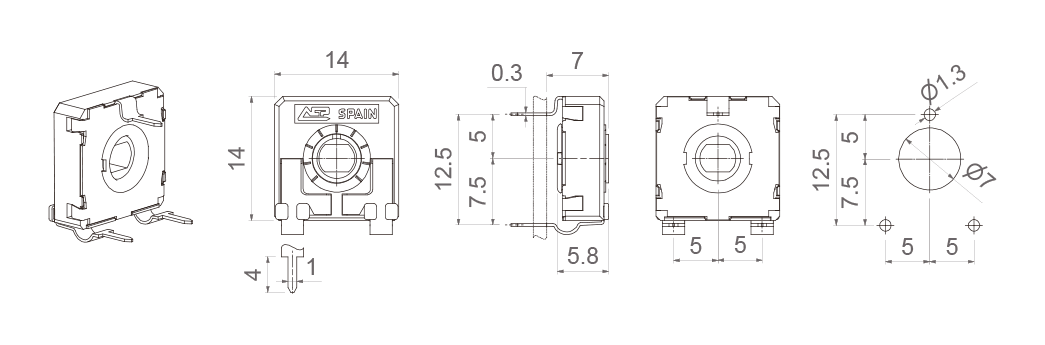

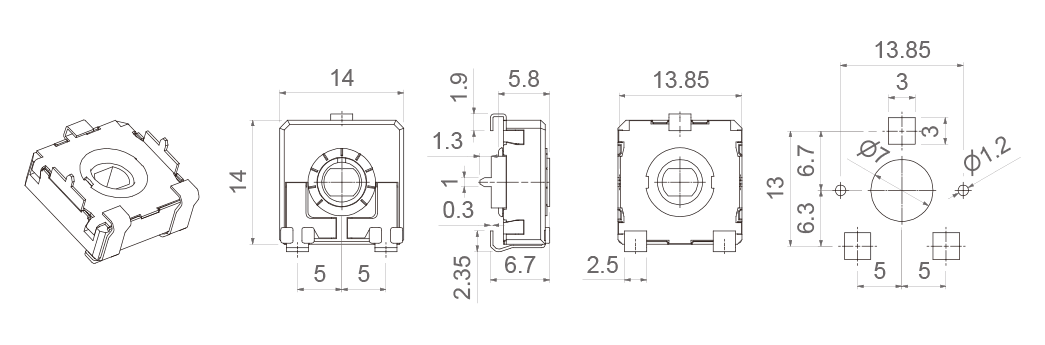

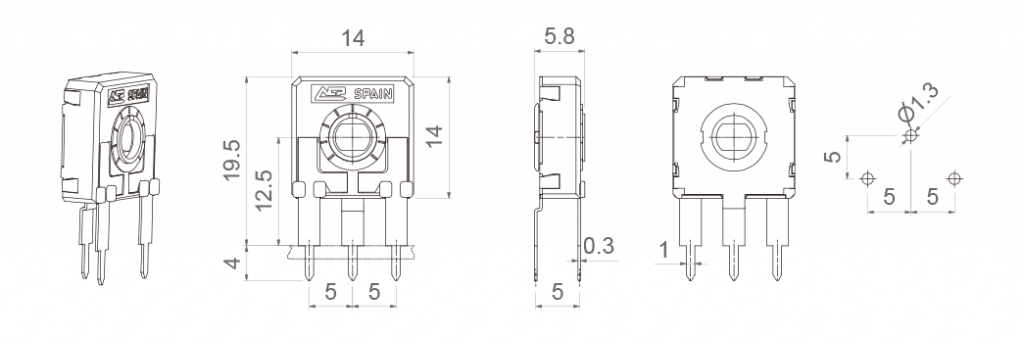

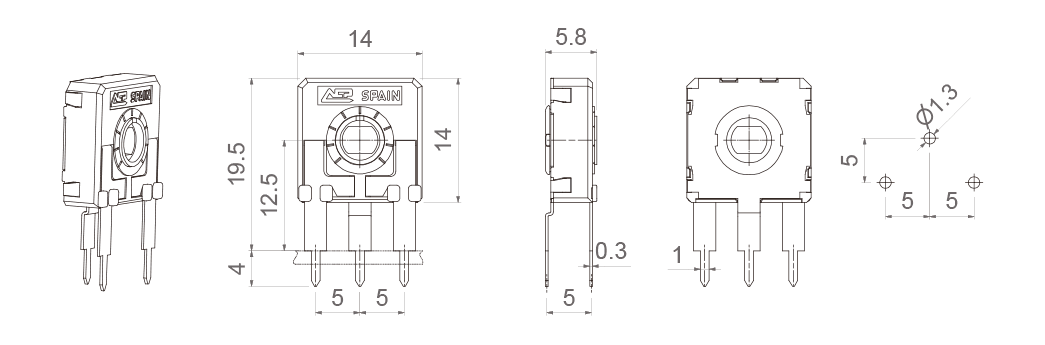

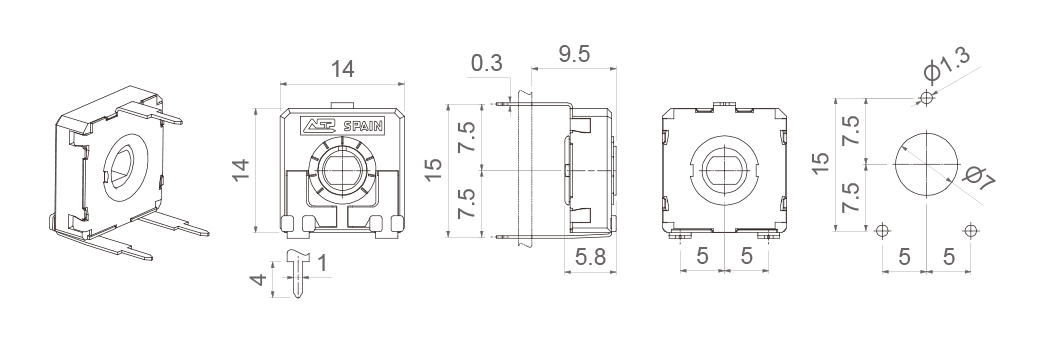

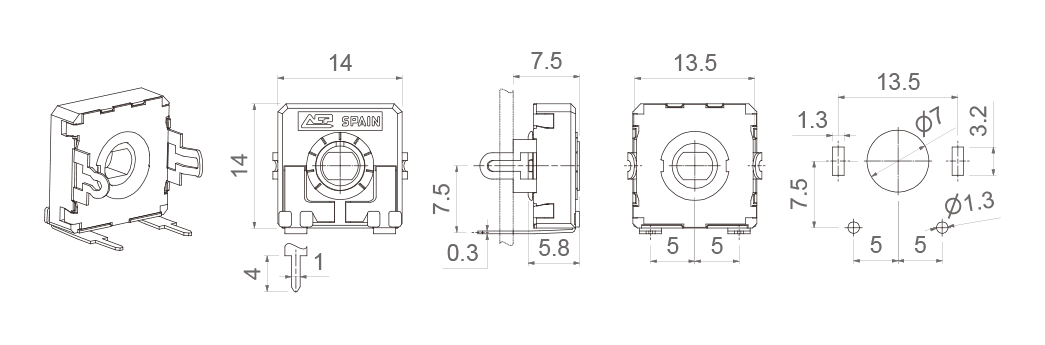

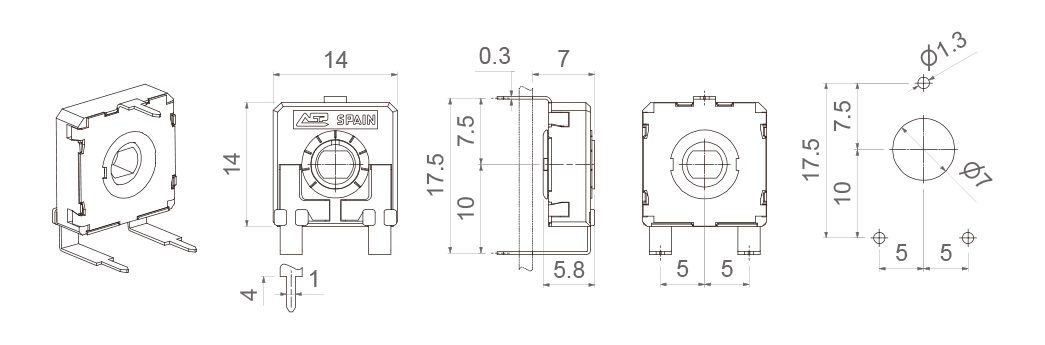

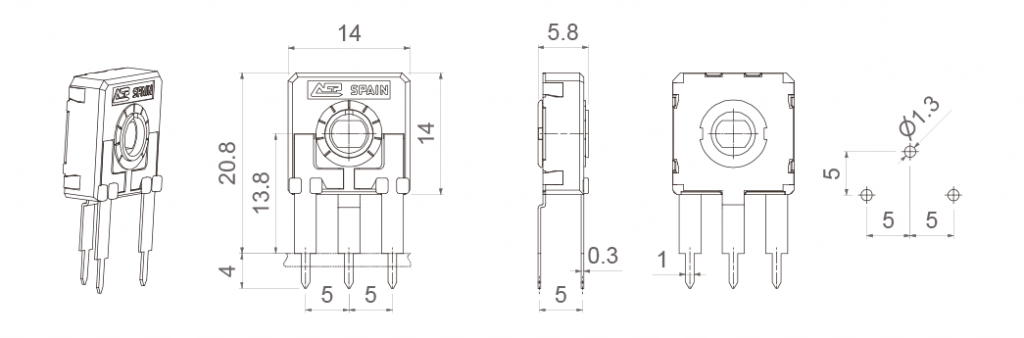

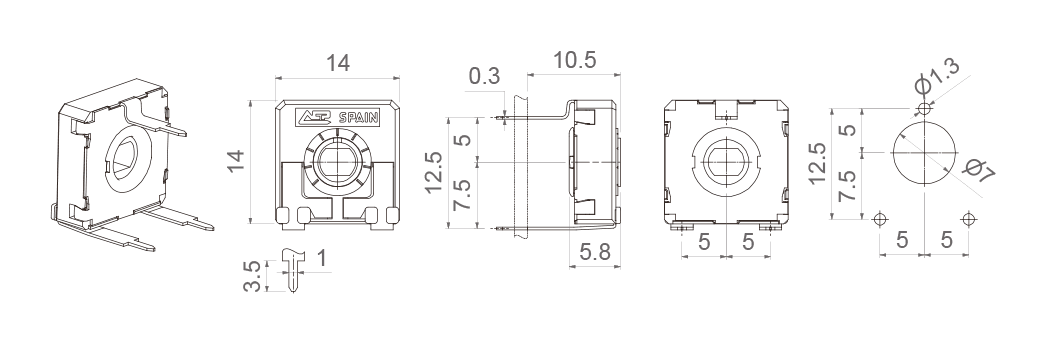

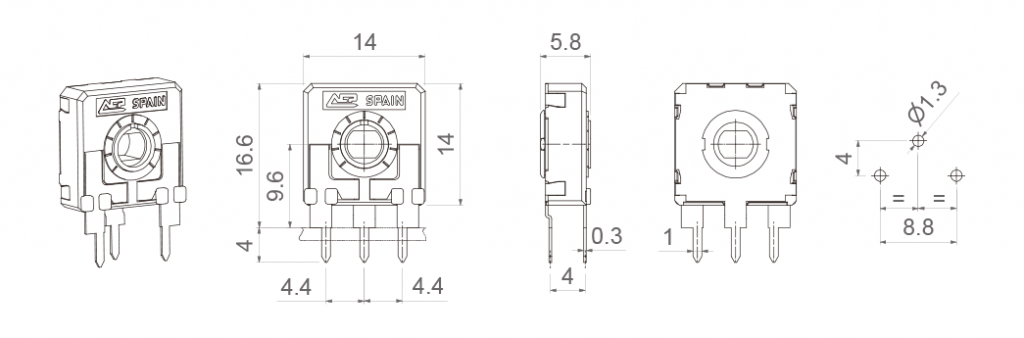

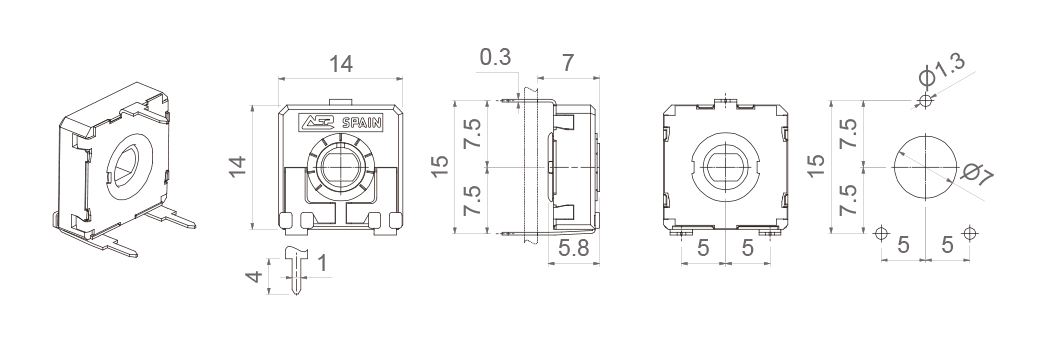

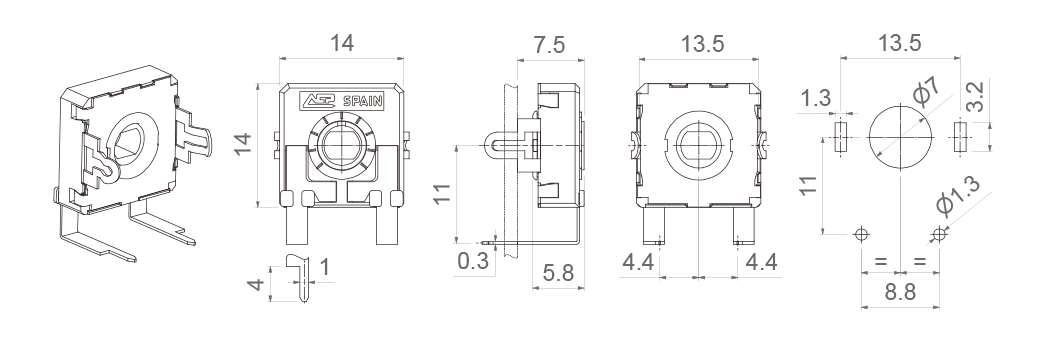

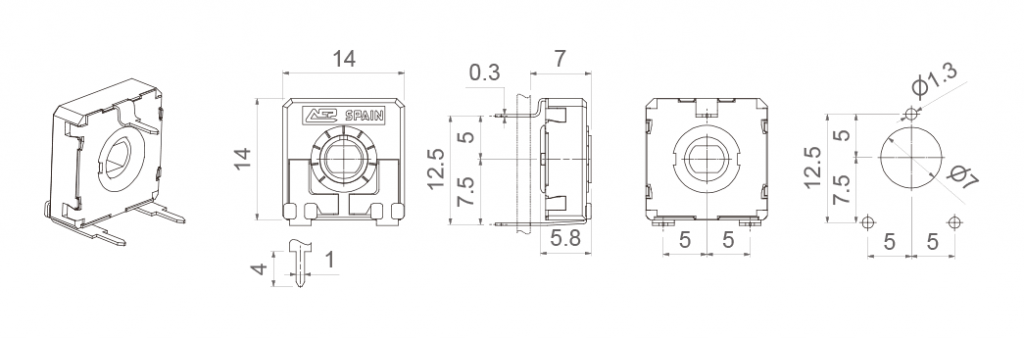

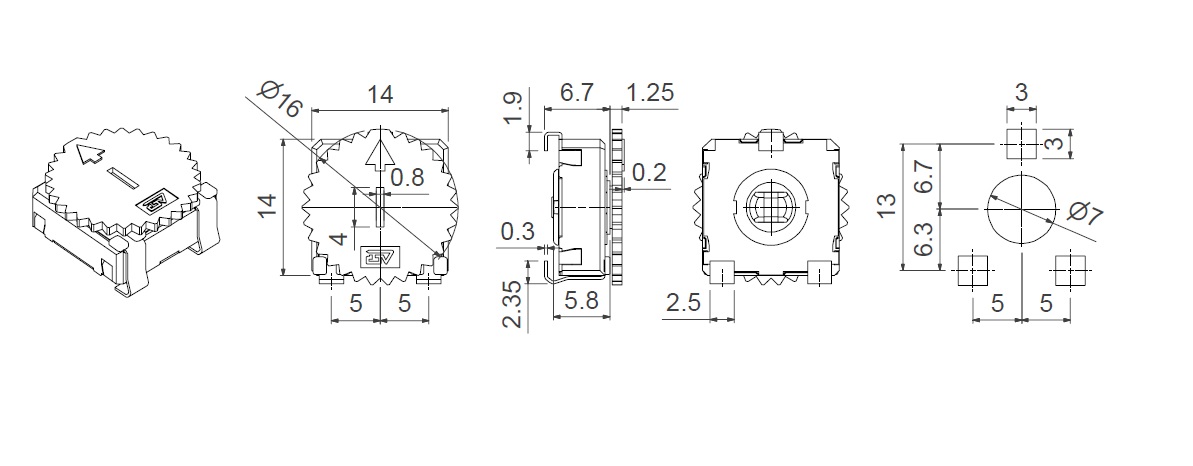

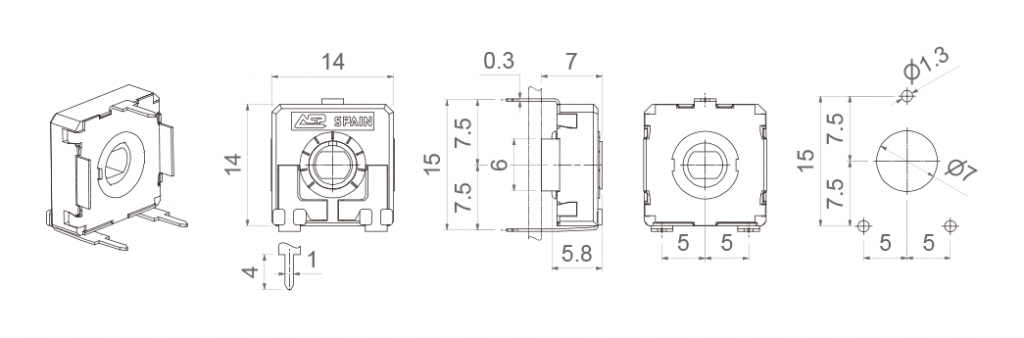

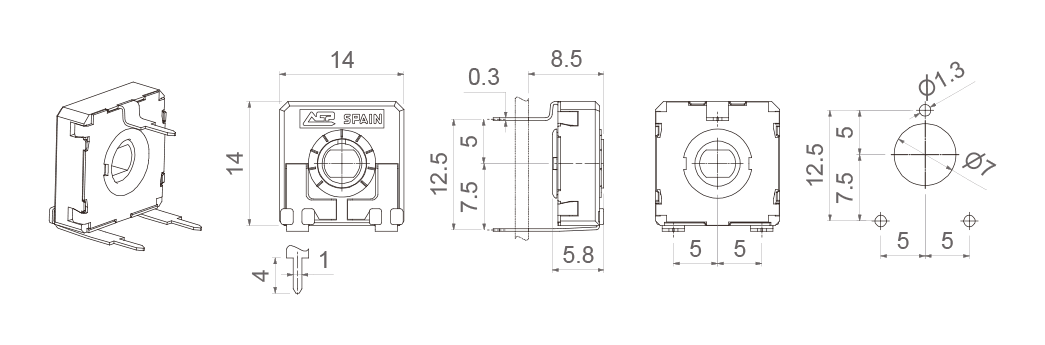

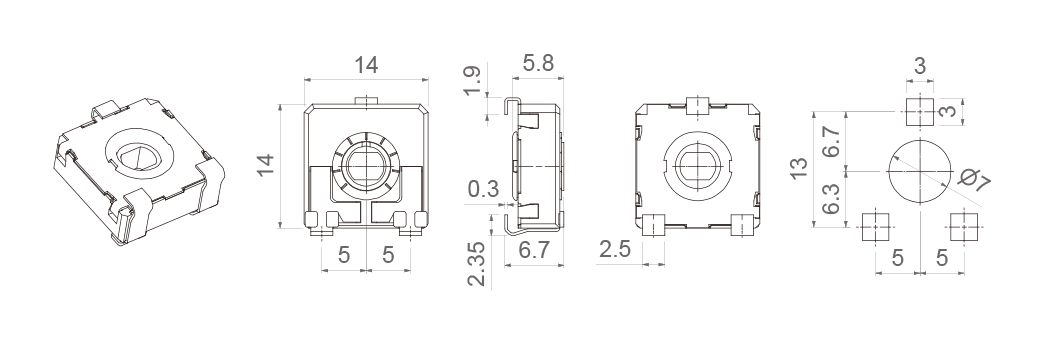

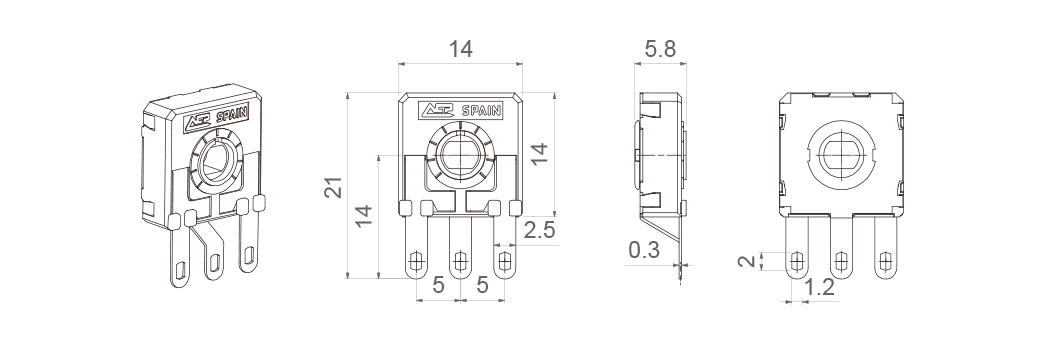

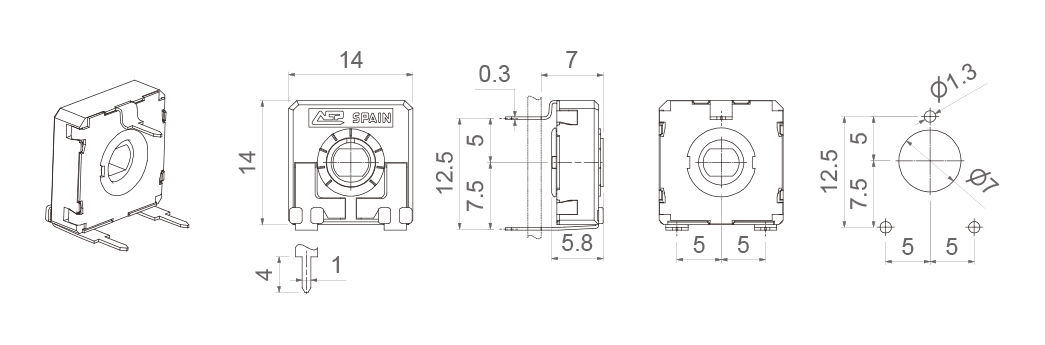

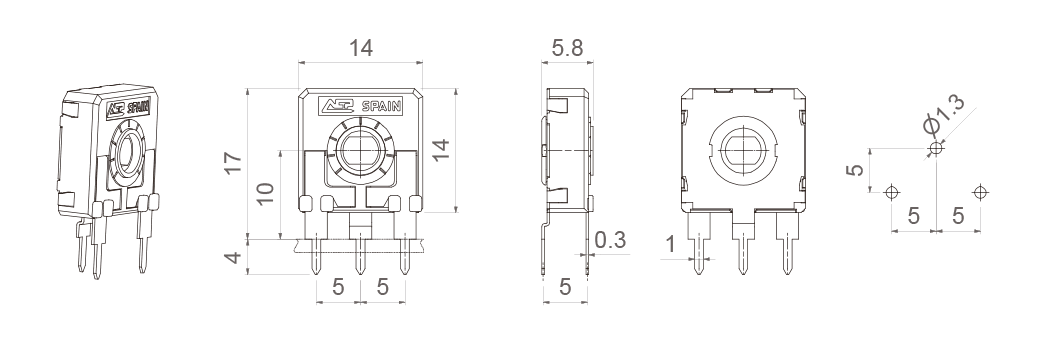

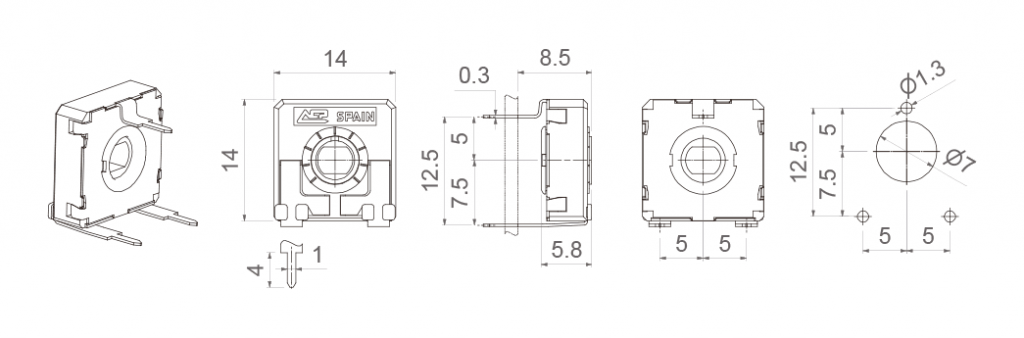

All models shown here have the most common rotor for 14mm potentiometers: the N rotor. Different rotors are available from the menu above.
CA14 – CE14 Models
