CA14 – CE14 Potentiometers with cut track

The cut track is an area with very high resistive value, resulting in an open circuit. It is widely used in lighting applications. Mechanical life with cut track needs to be confirmed.

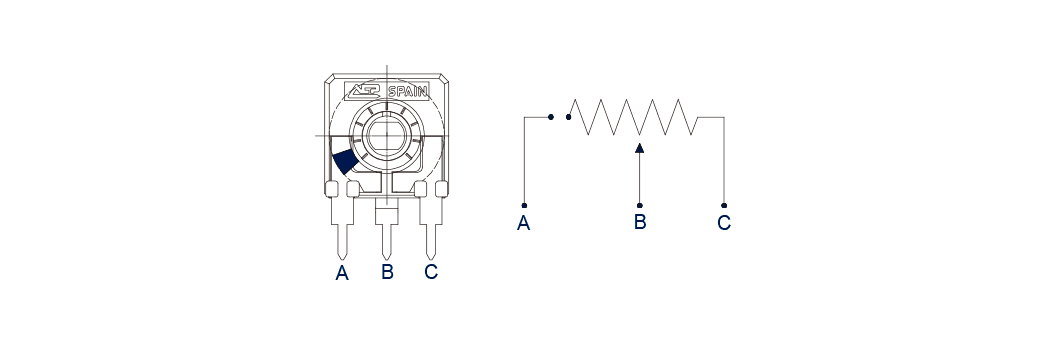

PCI = Cut at initial position, when the potentiometer is turned fully counter clockwise.

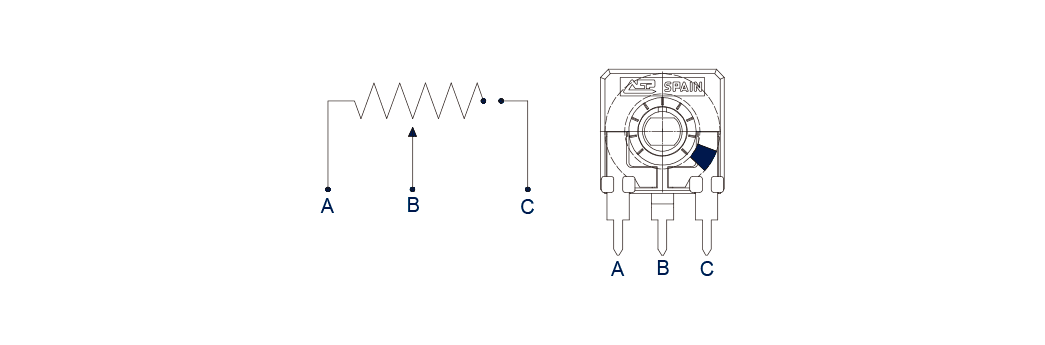

PCF = Cut at final position, when the potentiometer is turned fully clockwise.
Other positions are available on request.
