MCA14 – MCE14 Shafts

Shafts are available in different colors (color chart in “how to order” section) and with self-extinguishable property, according to UL 94 V-0, under request. ACP can study special shaft designs.
D dimension is the distance from the housing to the top of the shaft, as shown in the different models.

Shaft 14081 14187 14067 14008 14015 14066 14084 14250 14072 14073
D Dimension 15.2 15.7 24.7 20.2 20.2 20.45 20.45 21.95 28.7 35.45

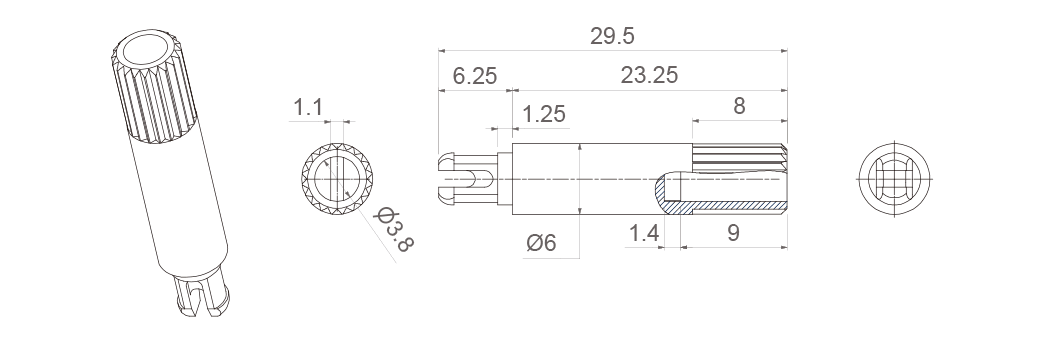

14008
14008

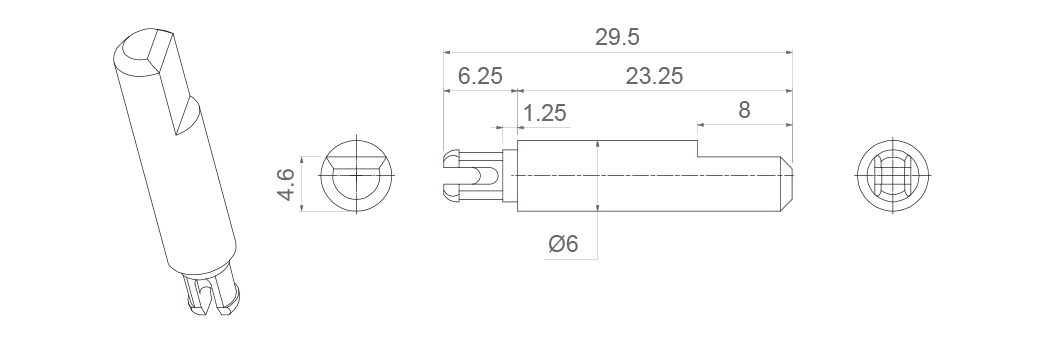

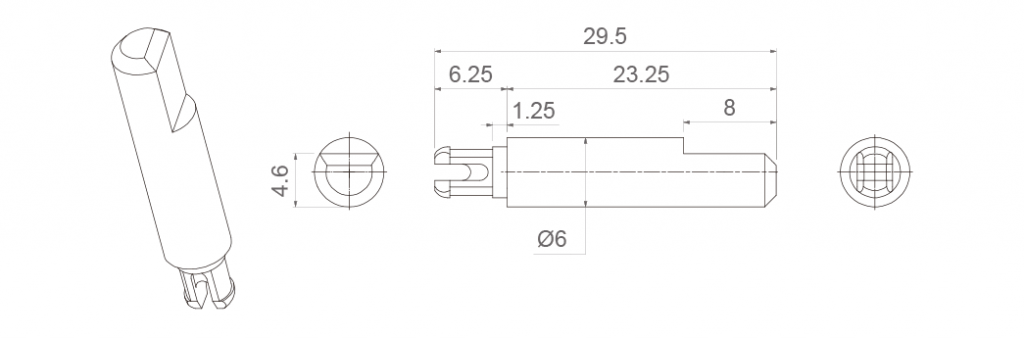

14015
14015

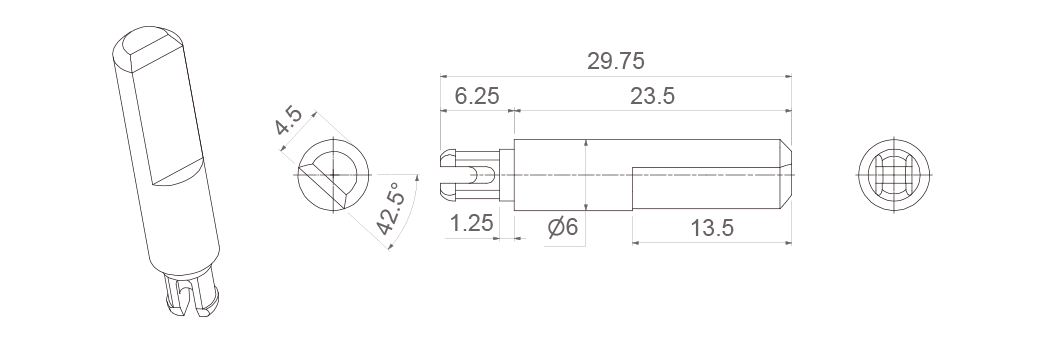

14066
14066

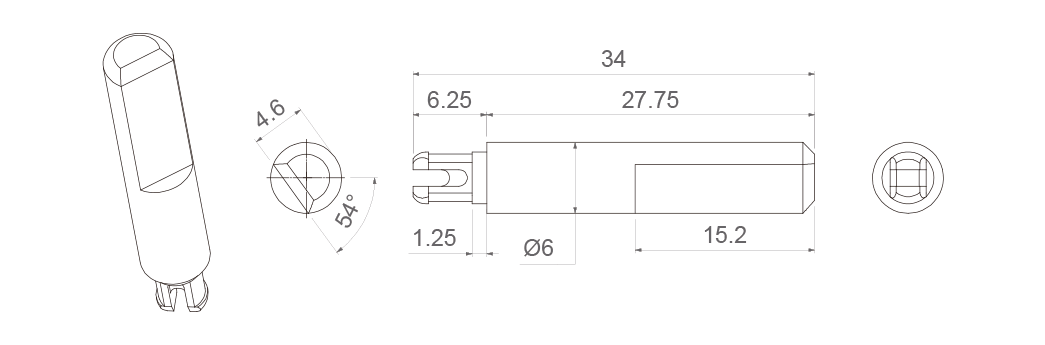

14067
14067

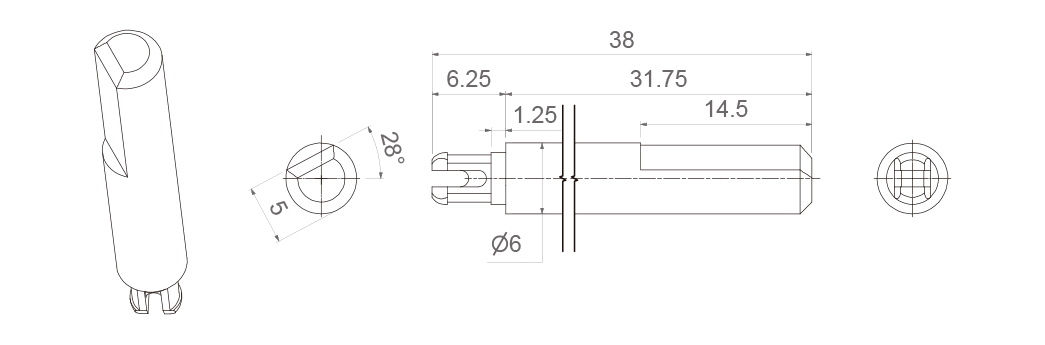

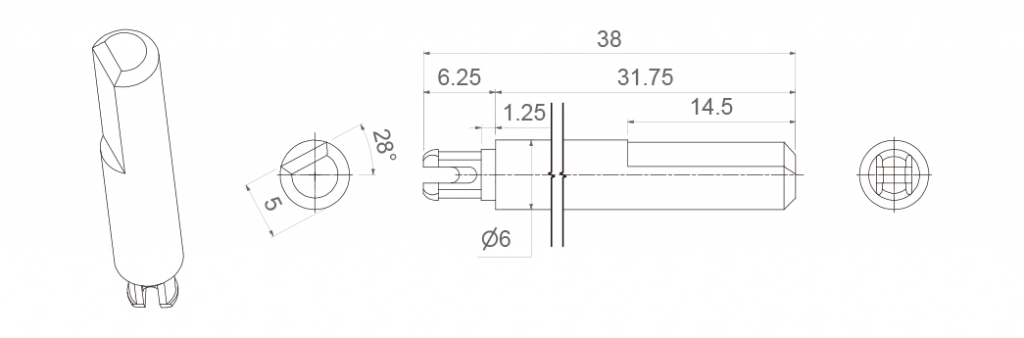

14072
14072

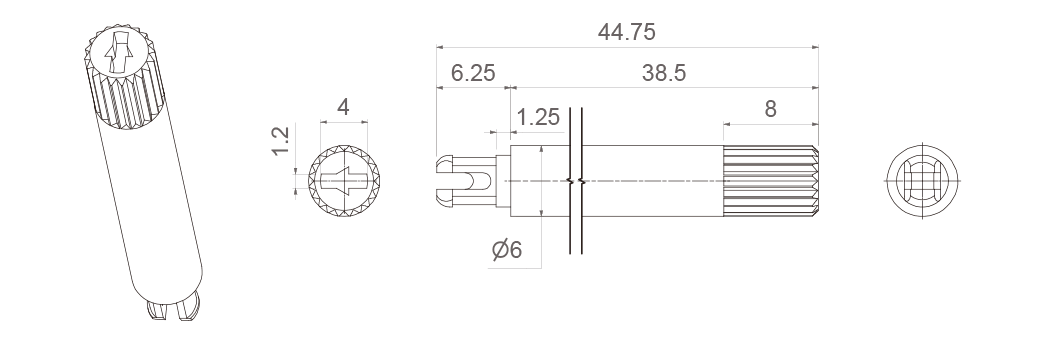

14073
14073

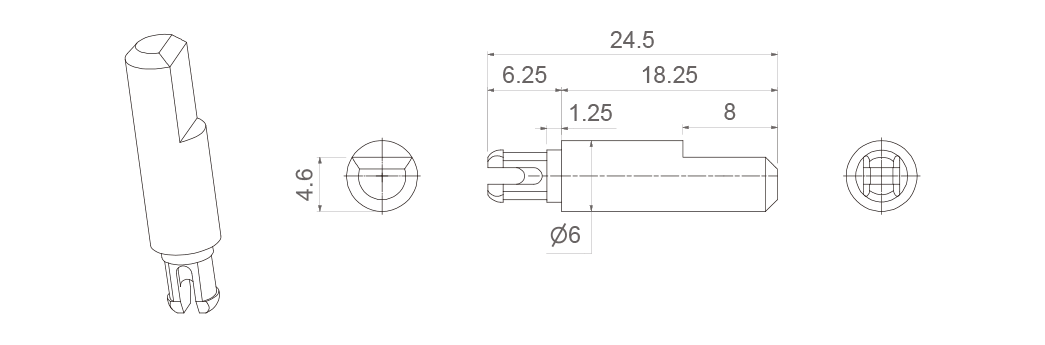

14081
14081

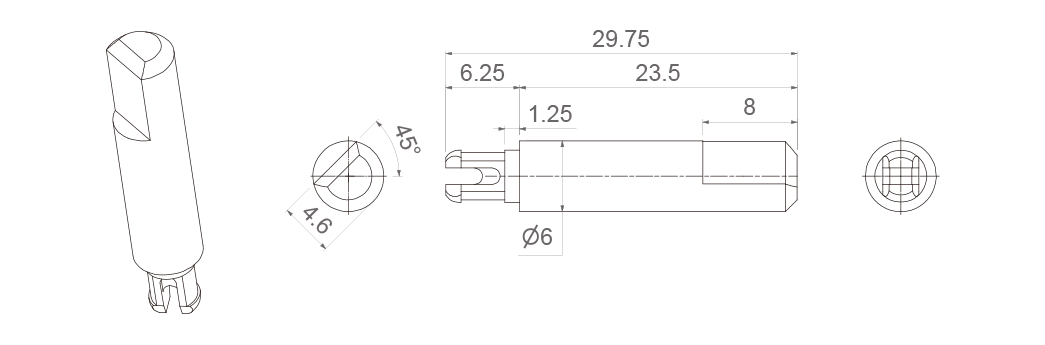

14084
14084

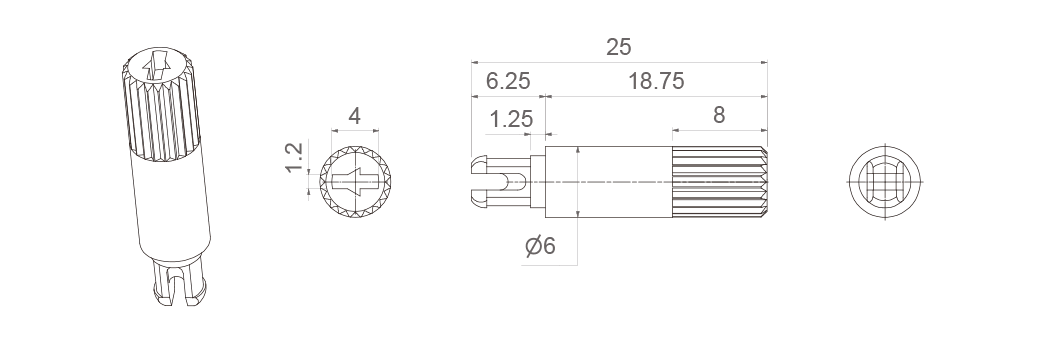

14187
14187

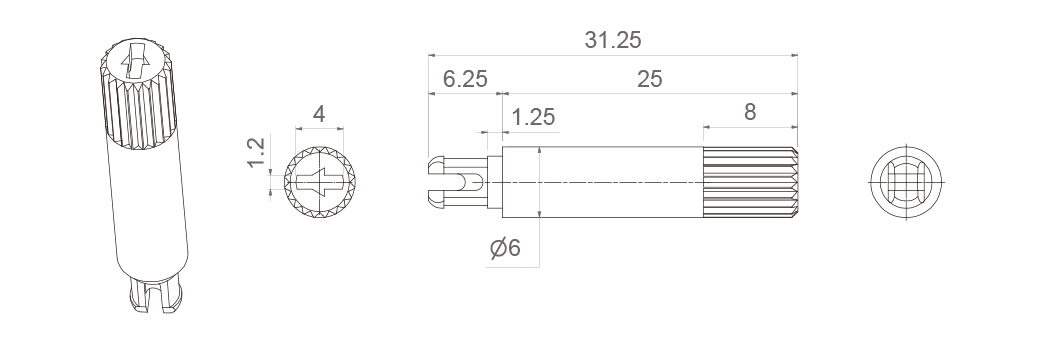

14250
14250
